Product Details:
|
| Automatic Grade: | Semi-automatic | Package Type: | Jumbo/big Bag |
|---|---|---|---|
| Weighing Range: | 400-2000kg | Machine Material: | Material Contact Parts Use 304SS, Other Parts Use Carbon Steel |
| Bag Sealing Type: | Hand Tie | Accuracy: | ±0.2-0.5% |
| Material Feeding: | Belt / Vibration / Auger | Voltage: | 220V/380V/50HZ Or Customized |
| High Light: | 1000Kg Jumbo Bag Packing Machine,1000Kg big Bag Packing Machine,1 ton Jumbo Bag Packing Machine |
||

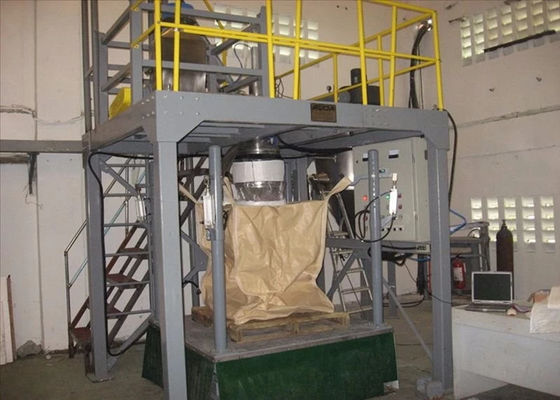

Electronic Weighing Jumbo Bag Packing Machine In Plastic Industry , 1000 Kg Package
Brief Introduction
This type packing machine can be used for any type of jumbo bags, such as 300kg, 500kg, 1tons, 1.5tons and 2tons etc.
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
Application Scope
Widely applied to ores, chemical construction material, grain, feed stuff etc.
Details
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Composition section of operating panel
The electric cabinet for this equipment is arranged beside the machine, the solenoid valve fixing box is fixed on the supporting legs of the platform in order to facilitate operation by the worker. The control panel mainly consists of the master power switch, touch screen, emergency stop button, etc.
1) Master power switch: red button located at right side of the electric control cabinet, used for controlling isolation and on-off of the main power supply.
2) Touch screen: used to realize operation control, parameter setting and display of relevant information of the packaging machine.
3) Emergency stop button: red emergency stop button, mainly used for emergency stop of the machine in case of emergency event during the production process. Once pressing this button, the packaging machine will be stopped, immediately, and the touch screen will display the corresponding information. After pressing this button, if you want to restart the equipment again, you must first reset the emergency stop button, and push “Soft Start” on the touch screen.
Technical Parameters
| Quantitative range (kg/bag) | 400~1500 kg | |
| Control accuracy (%) | Better than 0.2 | |
| Packaging speed (tons/hour) | 10-30 | |
| Type of packaging bag | PP centralized packaging woven bag | |
| Air supply source | Pressure (MPa) | 0.5±0.1 |
| Air consumption (m3/min) | 0.1 | |
| Power supply | Power supply | 380V, 50Hz |
| Power (kW) | 5.0 | |
| Working environment | Relative humidity | <95% |
| Ambient temp. | -15℃~45℃ | |
| Material | The part in contact with the material is 316L stainless steel, the rest is 304 stainless steel. | |
Features
The weighing system of SXP1000 quantification Ton packaging machinery contains high accuracy (0.02%) sensor and high-resolution controller, to keep the machine with high accuracy and stable performance.
The material feeding parts adopt two kinds big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
The packing range is 500-1200 kg adjustable. It suitable to big bags packing.
The parameter setting and the weighing calibration is very simple and with convenient operation.
Our Service
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
The machine is guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).

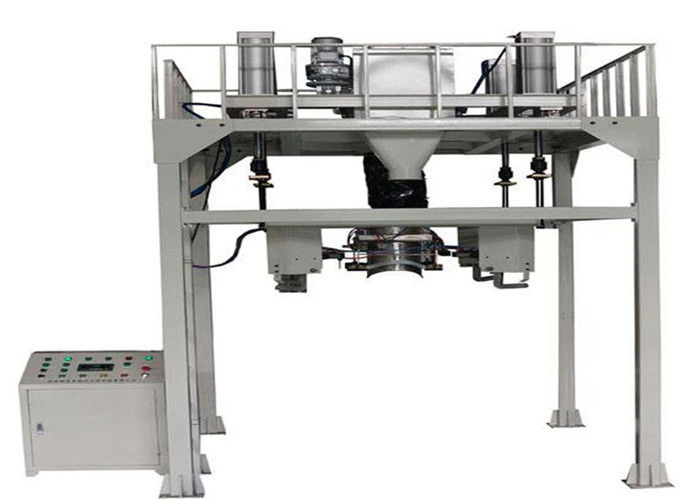

Main Structures
1. Automatic filling system
2.Automatic weighing balance
3. Ton-bag clipper
4. Automatic rolling conveyor
5. Electric control cabinet
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling- testing-packaging and transport-after service
