Product Details:
|
| Type: | Automatic Weighing And Packing Machine | Packing Speed: | 400-600 B/H |
|---|---|---|---|
| Material: | Normal Carbon Steel, Can Be Made All 304SS | Weighing Range: | 10-50kg |
| Weighing Accuracy: | ±0.2-0.5% | Material Feeder: | Gravity Filling/ Free Filling |
| Package Material: | Plastic , Paper, Film Compound Etc. | Usage: | Filling Weighing Sealing Conveying |
| High Light: | 50Kg Bag Granular Packaging Machine,304SS Granular Packing Machine,50Kg Bag Granular Packing Machine |
||

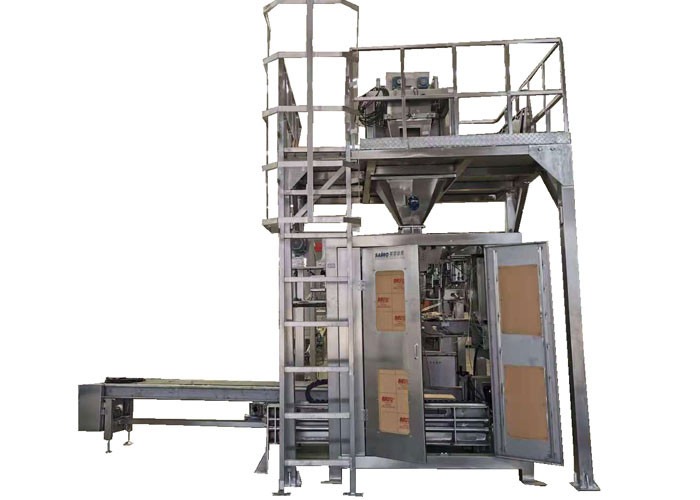

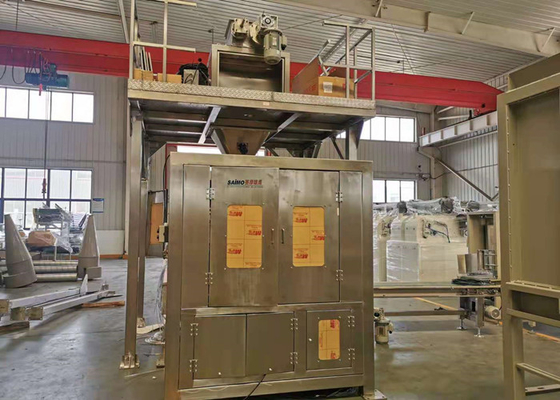

10-50 Kg Bag Granular Packing Machine With Electrical Spare Parts In Pet Food Industry
Automatic Weighing And Packing Machine is suitable to use in packing the high accuracy and easy fragile material , such as : puffy food ,crispy rice , potato chips , snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate ,pet food , small wares etc .
Automatic Weighing And Packing Machine Characteristics
1, Small in machine size, occupy less installation space;
2, Machine parts contact product use Stainless Steel for anti-corruption, also can make machine with whole Stainless Steel which can meets different client requirements and easy for maintenance;
3, Adopting PLC Control & Touch Screen Operating, easy to learn and operate;
4, Using imported famous brand electrical spare parts, ensuring stable working performance
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
General Introduction
Our new packaging machine unit designed for large bag of granule, powder materials in chemicals, fertilizer, feed, grain, seeds, food, rubber & plastic and other industries which has functions of automatic weighing, bag clipping, filling, bag sending, bag sealing etc. It can work with various granular and sheet materials and equipment to realize the production of large-scale packaging and heavy-bag packaging.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Our Promise
Documents:
Operational manual with English will be given at the time of dispatch of machine. We will also provide the electrical diagram in English and all the certification like CE, Certificate of Origin (Form A, Form E etc.) for your custom clearance and machine installation.
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sales Service:
1-One-year quality warranty and free lifetime technique support.
2-Free spare parts would be supplied if machine broken within warranty period.
3-After the warranty period, the spare parts for replacement are offered based on certain charge.
