Product Details:
|
| Name: | Automatic Bag Weighing And Filling Machine | Weighing Accuracy: | ±0.2-0.5% |
|---|---|---|---|
| Material: | Can Be Made All 304SS | Sealing Type: | Heat Sealed / Stitched / Folding Sewing |
| Speed: | 480-600 Bags / Hour | Controller: | PLC And Touch Screen |
| Usage: | Putty Powder | Weighing: | Sensor |
| High Light: | Putty Automatic Bag Weighing And Filling Machine,600 Bags Automatic Bag Weighing And Filling Machine,480 Bags Automatic Bag Weighing And Filling Machine |
||

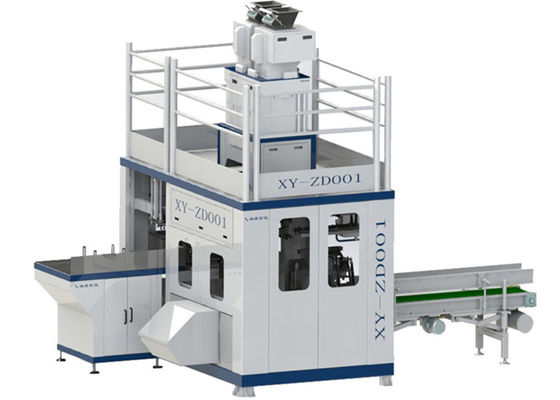

Putty Powder Automatic Bag Weighing And Filling Machine 480-600 Bags / Hour
Automatic Bag Weighing And Filling Machine Description
- SXPA50 Series Automatic Bag Weighing And Filling Machine Is Specially Designed For Pre-Made Big Sack Auto Bag Feeding And Packing At High Speed So As To Improve Customer’s Production Efficiency;
- The Machine Unit Can Be Applied To PP Woven Bag with PE Cover Inside or Outside and Kraft Paper Bag / PP Bag;
- This equipment totally adopts PLC man-machine interface display screen control, which significantly facilitates operation, so, it is the requisite equipment for automated enterprise production.
Automatic Bag Weighing And Filling Machine Application
Automatic Bag Weighing And Filling Machine for filter cotton paper, composite film, aluminum foil bags, non-woven fabrics, oil paper, heat sealing plastic bags and other heat-sealing packaging materials.
Technical Parameters
|
Machine Model |
SXPA50 |
SXPA50P |
|
Packaging Weight |
10-50KG |
10-50KG |
|
Bag Size: L*W(mm) |
630-1100/350-650 |
630-1100/350-650 |
|
Package Material |
Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) |
|
|
Measuring Accuracy |
0.2%FS |
0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) |
2-5 bags/minute (a little different as different packaging materials and bag sizes) |
|
Sealing Mode |
Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing |
|
System equipment meets engineering condition &public use
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
Machine Main Parts List
a. Empty bag storage
b. Empty bag taking unit
c. Bag management unit
d. Bag sending unit
e. Bag upper unit
f. Bag clipping and material filling unit
g. Bag holding unit
h. Bag mouth guiding unit
i. Heat sealing / bag sewing station
j. Stand-up bag conveyor
k. Electrical control section
Machine main components list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
Packaging and Delivery
* Our wooden case is very strong; it can bear long time shipping on the sea.
* Machine packing inside is plastic films and outside is fumigation wooden case.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Our Promise
Documents:
Operational manual with English will be given at the time of dispatch of machine. We will also provide the electrical diagram in English and all the certification like CE, Certificate of Origin (Form A, Form E etc.) for your custom clearance and machine installation.
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sales Service:
1-One-year quality warranty and free lifetime technique support.
2-Free spare parts would be supplied if machine broken within warranty period.
3-After the warranty period, the spare parts for replacement are offered based on certain charge.
FAQ
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) |
Speed (bags/minute) |
Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) |
Empty bag: L * W Full bag: L * W * H |
||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
