Product Details:
|
| Name: | Robotic Palletizer | Controller: | PLC |
|---|---|---|---|
| A Axis Movement: | 330 ° | Voltage: | Customized |
| Product Capacity: | 400-600 Cases/hour | Function: | Palletizing , Stacking , Picking And Placing |
| Robot Gripper Type: | Designed According To Product | Machine Weight: | 500-1000kg |
| High Light: | PLC Robotic Palletizer,Drink Industry Robotic Palletizing System,PLC Robotic Palletizing System |
||

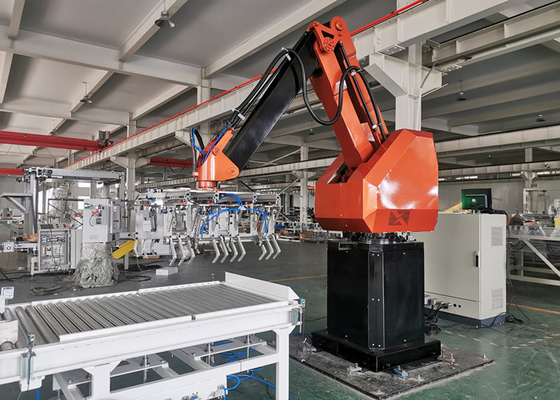

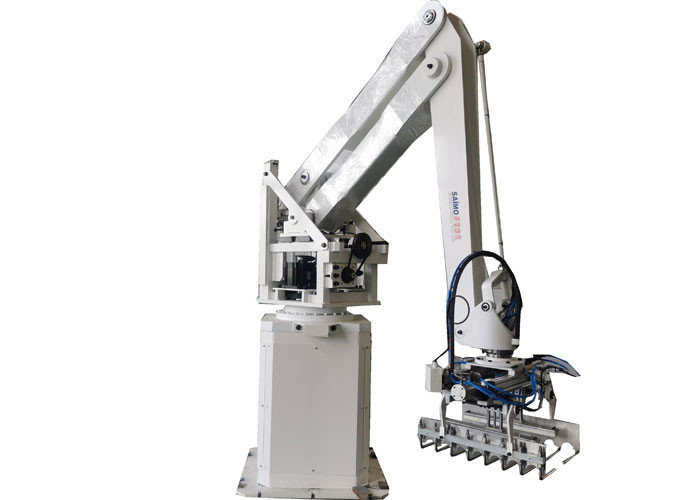

Belt Palletizing Robots Pallet Lifting Device Used In Drink Industry
Product Application
The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc.
Brief Introduction
SR series robot has unique linear actuator, energy-saving, environmentally friendly arm design, and simple operation interface formulate gripper, which can customize professional robot solutions for different production lines and materials. Its excellent accuracy, speed, and efficient and stable performance enable a robot to complete the palletizing requirements of multiple production lines at the same time. Robot load capacity 120KG-300KG, can be suitable for feed, chemical, grain and oil, food, building materials, daily chemical, alcohol, beverage, medicine, home appliances, 3C electronics and other industries.
Robotic Palletizing System Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
5. Precise positioning of the pallet position.
6. Easy to choose the job and writing mode.
Function
B. The product palletizing patterns, pallet supply and discharging can all be programmed by PLC.
C. Palletizing pattern is easy to adjust on the touchscreen.
D. Carton supply system adopts brake motor control to ensure carton conveying according to pre-set position.
E. Pallet magazine has a high capacity of 12-15 empty pallet ensuring automatically pallet supply.
Reliability - long uptime
Fast - Short cycle times, the robot is specially optimized for packaging application.
High precision - components production is in high quality and stability so that the robots has a very high accuracy.
Strong function - a wide range of applications.
Versatility - Flexible integration and production.
We will recommend our customers different models robot palletizers based on their products and requirements.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will go to your factory to install and adjust the processing line to realize normal production at shortest time.
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
