Product Details:
|
| Name: | Robotic Palletizing | A Axis Movement: | 330 ° |
|---|---|---|---|
| Product Capacity: | 500-800 Cartons/hour (double/three Catch) | Voltage: | Customized |
| Origin: | Anhui, China | Controller: | PLC |
| Machine Weight: | 500-1000kg | Robot Gripper Type: | Designed According To Product |
| High Light: | Logistic Robot Palletizing System,Logistic System 4 Axis Palletizing Robot,PLC 4 Axis Palletizing Robot |
||

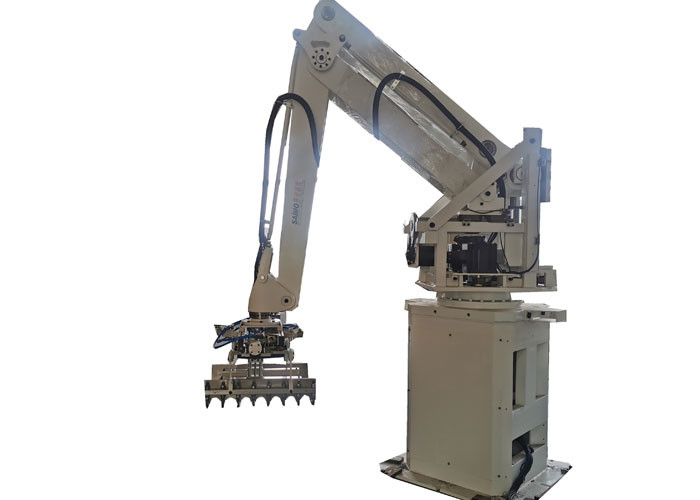

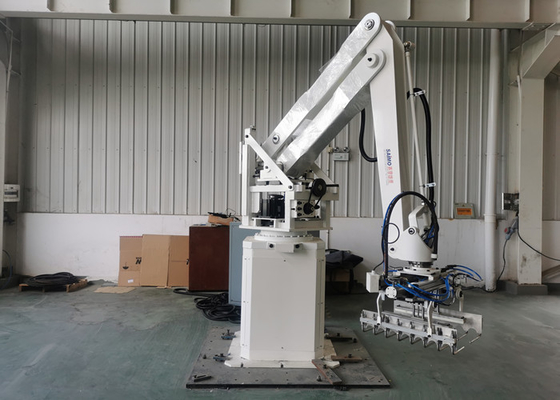

4 Axes Palletizing Robots Robots Used In Factories Logistic System
Brief Introduction
The multilayer of palletizing enables the fork moves them into storehouse. This equipment adopts PLC touch screen and intelligent managing which us not only simple and easy to master, but also reduce labor.
Product Application
The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc.
Robotic Palletizing System Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Function Characteristics
1. PLC controller (operating can be English or any other language client required), easy to use
2. Let linear motion come true, simplify control system
3. Low power consumption, only 1/3 consumption of the same kind of mechanical stacker crane from other companies
4. Only need a little floor space, floor utilization ratio is high
5. Diverse gripper, flexibly adapt various palletizing requirements
FAQ
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: what’s the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will go to your factory to install and adjust the processing line to realize normal production at shortest time.
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
