Product Details:
|
| Name: | Pick And Place Robot | Robot HMI Origin: | Korean PLC |
|---|---|---|---|
| Product Capacity: | 500-800 Packages/hour | Voltage: | 3 Phase/ 380V |
| A Axis Movement: | 330 Degree | Application: | Beverage , Food , Carton, Drum, Bag Etc. |
| Function: | Palletizing , Stacking, Placing Etc. | Robot Gripper Type: | Designed According To Product |
| Highlight: | Chemical Industry Robot Palletizing,Pick And Place Robot Palletizing,PLC Pick And Place Robot |
||
Low Cost Pick And Place Robot Palletizing With Factory Layout Design In Chemical Industry
Brief Introduction

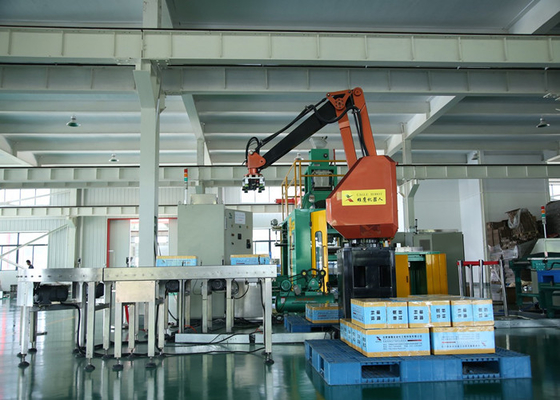

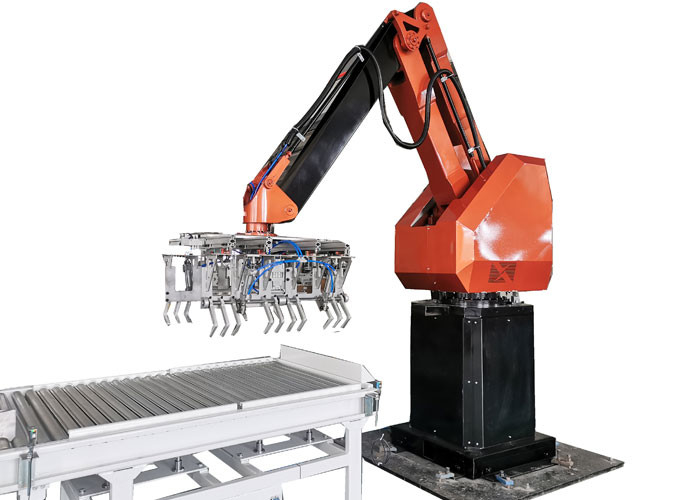

Eagle XY-SR serious palletizing robot is four-degree cylinder surface coordinate palletizing robot, mainly move by horizontal movement axis, vertical movement axis, rotation foundation and hand axis.
The multilayer of palletizing enables the fork moves them into storehouse. This equipment adopts PLC touch screen and intelligent managing which us not only simple and easy to master, but also reduce labor.
Robotic Palletizing System Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
Function
1. Simple structure, low failure rate and convenient maintenance
2. Few main parts and accessories, low maintenance cost
3. Low power consumption, only 1/3 consumption of the same kind of mechanical stacker crane from other companies
4. Only need a little floor space, floor utilization ratio is high
5. Diverse gripper, flexibly adapt various palletizing requirements
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will go to your factory to install and adjust the processing line to realize normal production at shortest time.
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
