Energy Saving 4 Axes PLC 50kg Bag Palletizing Robot for Feed Industry
Basic Properties
Place of Origin:
Hefei, Anhui, China
Brand Name:
AGMT
Certification:
CE
Model Number:
XY-SR130
Trading Properties
Minimum Order Quantity:
One unit
Price:
26280
Payment Terms:
L/C,T/T
Supply Ability:
50 units/month
Product Summary
Energy Saving Stacking 4 Axes PLC 50kg Bag Palletizer Robot For Feeds Bag This advanced robotic palletizer provides intelligent, robotic automation for production sites, offering a comprehensive palletizing logistics system suitable for various industries including beer, beverage, and food ...
Product Details
Highlight:
Energy Saving Robot Palletizing System
,50kg Bag Palletizer Robot
,50kg Bag Robot Palletizing System
Axis:
4 Axis
Controller:
PLC Controller
Movement Method:
Circle Pass Coordinate Type
Packaging Material:
Plastic, Paper, Film Etc
Horizontal Movement:
330 Degree
Other Name:
Stacking Robot
Installation:
Drawing And Online Supported
Voltage:
380V / 50Hz-60Hz
Product Description

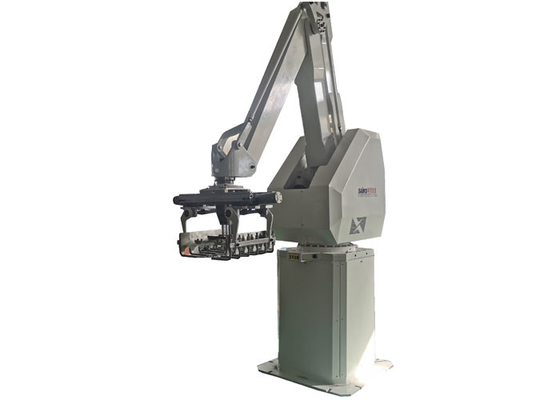

Energy Saving Stacking 4 Axes PLC 50kg Bag Palletizer Robot For Feeds Bag
This advanced robotic palletizer provides intelligent, robotic automation for production sites, offering a comprehensive palletizing logistics system suitable for various industries including beer, beverage, and food processing.
Product Applications
The robot palletizer can be integrated into any production line, providing intelligent automation and networking capabilities. It serves as a complete palletizing logistics system widely used for handling cartons, plastic crates, bottles, bags, barrels, shrink-wrapped products, and cans across multiple industries.
Technical Specifications
| Item | AGMT-SR130 | AGMT-SR210 |
|---|---|---|
| Model | AGMT-SR130 | AGMT-SR210 |
| Number of Axes | 4 Axes: A B C D (can be 6 axes) | 4 Axes: A B C D (can be 6 axes) |
| Movement Method | Circle pass coordinate type | Circle pass coordinate type |
| Installation | On floor | On floor |
| Palletizing Weight (includes gripper) | 130kg | 210kg |
| Handling Capacity | 1500 times/hour | 1700 times/hour |
| Movement Range - A Axis (Horizontal) | 1300mm | 1500mm |
| Movement Range - B Axis (Vertical) | 2000mm | 2300mm |
| Movement Range - C Axis (Body) | 330° | 330° |
| Movement Range - D Axis (Gripper) | 330° | 330° |
| Location Repeat Accuracy | ±0.5mm | ±0.5mm |
| Power | 4KW | 6.5KW |
| Teaching Method | Manual teaching / teaching support / teaching exemption (optional) | |
| Robot Weight | 800kg | 1300kg |
Key Features
- High Reliability - Designed for maximum uptime and continuous operation
- Fast Operation - Optimized for packaging applications with short cycle times
- High Precision - Quality components ensure exceptional accuracy and stability
- Versatile Applications - Wide range of handling capabilities
- Flexible Integration - Adaptable to various production environments
- PLC Controller - Available in English or other required languages
Software Capabilities
- Convenient pallet status confirmation
- Precise pallet positioning
- Easy job selection and writing modes
- Multi-language operating interface (Chinese, English, and others)
- Premium brand motors (SEW)
- Built-in palletizing software package
Electrical Components
Packaging & Shipping
Machines are film-wrapped and packed in export-grade fumigated wooden cases, then transported to the designated departure port (Shanghai, Ningbo, Qingdao, Suzhou, etc.) as required by the customer.
Customization Inquiry
To receive detailed pricing and specifications, please provide the following information so we can recommend the optimal machine model for your requirements:
- Product type and packaging format (bags, cartons, etc.)
- Required packages per hour capacity
- Workshop layout or available space dimensions
- Full pallet height (excluding pallet thickness)
- Palletizing pattern (bags per layer, layers per pallet, bag arrangement)
