Product Details:
|
| Capacity: | 6-10 Bags / Minute | Conveyor Length: | 3m |
|---|---|---|---|
| Weighing Controller: | Germain System | Load Cell: | Telode |
| Hopper Volume: | 0.3 CBM | Operator Required: | One Person |
| Automatic Grade: | Semi-automatic | Way To Change Package Weight: | By Changing Formula In Controller |
| Machine Weight: | 400-600kg | ||
| High Light: | 50kg Granule Packing Machine,50kg granular packaging machine,25kg grain packaging equipment |
||

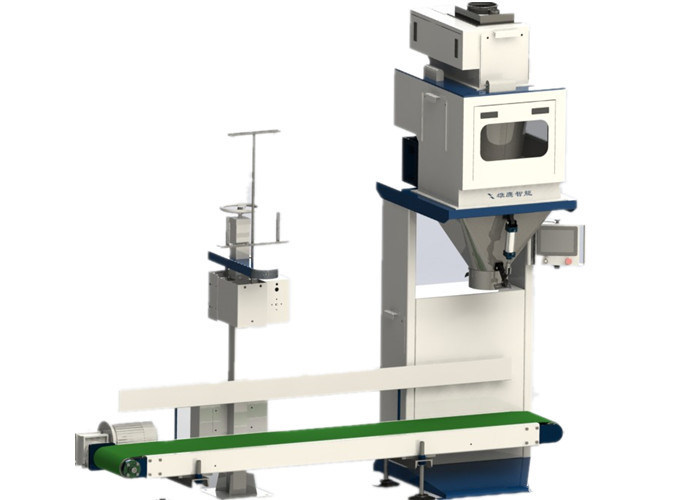

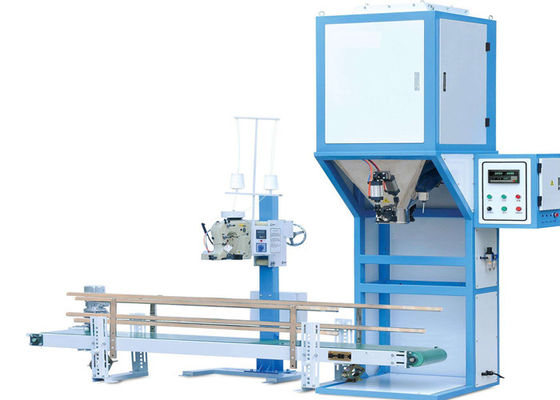

Flapper Valve Granule Packing Machine System In Seasoning Industry With Duster Reserved
Machine Parameters
| Machine type | SXP25G |
| Weight range kg | 5-25kg, MAX50kg/bag |
| Accuracy | 2 |
| Scale division |
0.2-05%% (According to material characteristic) |
| Weight speed | 3-8 times /min |
| Environmental Requirement | relative humidity≤90% |
| Electrical Requirements | AC380V 50Hz |
| Power | 3KW |
| Air requirement | 0.4-0.6Mpa 1m³ /h |
| Machine weight | 400-600 kg |
| Conveyor Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Product Process
Obtain raw materials, cutting, laser, shearing, bending
Assembling, welding
Surface treatment: grinding, polishing, pickling
Assembling, finish circuit boards
Test machine before delivery
QC give inspection report, then arrange delivery
Machine Features
Auto minus of the weight and auto zero resetting.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Touch screen for easy operation
Equipped with bag clamping system, just need manual put the bag to the filling mouth.
The bag size, and target weight and be easy adjust between the machine weighting range.
Machine Main Parts
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Application Range
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials,
starch, food, rubber and plastics, hardware, minerals, covering more than 20 industries, more than 3,000 kinds of materials.
Packaging and Shipping
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
Our Service
1)If you have any question on our products, please leave message to us on Alibaba or contact us directly. Our service team shall offer your prompt reply after your inquiry.
2) After the machine arrive at customer present, we shall arrange engineers to be there for machine installation and operating training.
3) If the machine meet problem during future using, call our direct line or eamil us directly and take picture for showing us the problem, we shall take action to solve problem within 24 hours.
FAQ
Q: What is the material of contact material parts?
A: The contact material parts are made of 304 stainless steel. The machine body can be 304 stainless steel or carbon steel.
Q: Can this machine make different bag sizes?
A: Yes, we can be formulated according to your requirements.
Q: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in our factory.
