Product Details:
|
| Voltage: | 280V / 380V | Weighing Range: | 10-50kg |
|---|---|---|---|
| Filling Method: | Screw Filler / Gravity Filler | Origin: | Hefei, Anhui, China |
| Packing Speed: | 480-600 Bags/ Hour | OEM: | Acceptable |
| Package Material: | Plastic , Paper , PE , PP Etc. | HS Code: | 8422400000 |
| Highlight: | 45kg bag Automatic Weighing And Packing Machine,45kg bag automatic weighing and bagging machine,45kg bag auto weighing packing machine |
||

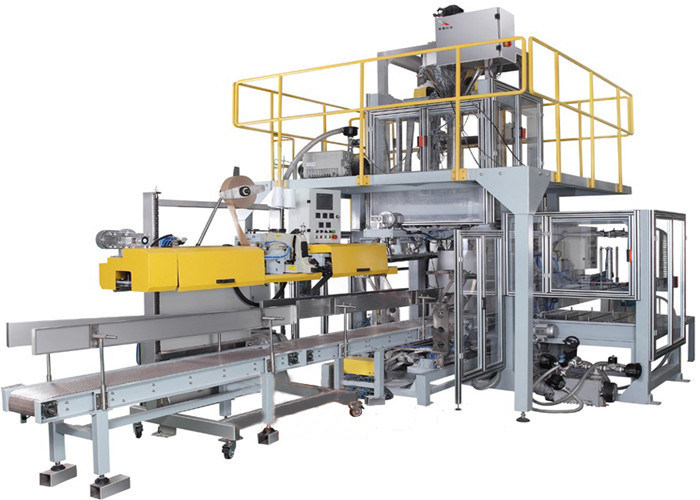

Plastic Pellet Automatic Weighing And Packing Machine In Rubber Industry For PP Woven Bag
Machine Developing Background Introduction
- With the world society developing at an amazing speed, the labor cost and the working efficiency has already become a major concern of many big enterprises. Meanwhile, how to improve the packing technology and help customers to solve their problem also becomes a big target for all the packing machine manufacturers;
- Grasp the key point, Saimo Eagle Automation self-developed the newest generation SXPA5O Automatic Big Bag Bagging & Palletizing Machine to meet the great market needs; since then, the machine unit has been put into market for more than ten years and has been greatly accepted by many customers all over the world;

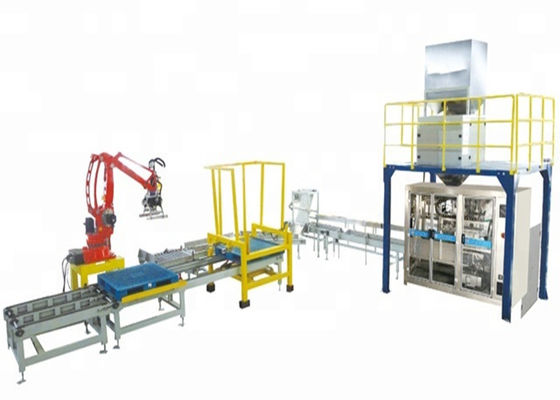

- The whole machine line starts from front line connecting, material measuring, filling, bag feeding & clamping, bag conveying & sewing, finished products comes out; Further line shall continue with bag push down system, bag shaping conveying system, robot palletizing system & pallet stock system; palletizing system & pallet stock system
Technical Parameters
| No. | Item | Parameter |
| Material of premade bag | Premade PP woven Bag/Lamilated film | |
| 1 | Packaging specification | 10kg-50kg |
| 2 | Speed | 6-10 bags/min(regarding to different size); |
| 3 | Weighing accuracy | 0.2-0.5% |
| 4 | Power supply | 380V±10% 50Hz 14 KW |
| 5 | Machine weight | 2000kg |
| 6 | Machine size | 5700*2800*4900mm |
| 7 | Air supply source | 0.6MPa, 0.5m3/min |
Machine Features
1. Applicable to the packaging bags of the same specification, if the packaging bag needs to be changed, please make adjustment as per the operation requirements;
2. This machine adopts rational design, bag suction, bag opening, filling and sealing are completed automatically;
3. This machine adopt PLC + man-machine interface display screen control with high performance, high speed and high efficiency;
4. This machine is structurally compact and has nice appearance;
5. This system is suitable for various packaging materials such as paper bag, woven bag (without coated film), plastic bag, etc., and is widely applied in chemical, forage and grain sectors, etc.
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Toledo (Sweden)
|
Application Range
Particles, sheet materials (such as polyethylene, polypropylene, polyvinyl chloride, PVC, PVA, etc.). In the process of production, it realizes the full automation of bag supply, bag taking, bag opening, bag bagging, metering, filling, bag unloading, clamping shaping, folding and sealing, etc.
Packaging and Delivery
1. Packing: Wrapped with film firstly, then packaged with standard wooden cases
2. Delivery: Usually we adopt sea transportation, if there are different requirements, we will make it accordingly
Our Promise
Documents:
Operational manual with English will be given at the time of dispatch of machine. We will also provide the electrical diagram in English and all the certification like CE, Certificate of Origin (Form A, Form E etc.) for your custom clearance and machine installation.
Before Sale Service
- Leave Message to Us on Alibaba;
- Send Email to Us Directly;
- Add Me on WhatsApp / WeChat Directly: +86-18255170863
No Matter Which Way You Choose, We Shal Reply You As Soon As Possible.
After Sale Service
- We Shall Arrange Engineers to Be at Present After Machine Arrived at Customer's Factory;
- Teaching Lessons Shall Be Arranged During Installation Periods.
- The Engineer Shall Head Back to China Until Machine Running Stable At Present.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
FAQ
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) |
Speed (bags/minute) |
Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) |
Empty bag: L * W Full bag: L * W * H |
||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
