Product Details:
|
| Color: | White Or OEM | Application: | Beverage, Food, Medical Etc. |
|---|---|---|---|
| Packaging Material: | Plastic, Paper, Film Etc. | Type: | Packaging Line |
| Origin: | Hefei, Anhui, China | Controller Language: | English / Customized |
| Dimension(L*W*H): | According To The Workshop Layout | Machine Size: | According To The Designed Layout |
| Max Payload: | 130kg / 180kg / 250kg | User Manual: | English Version |
| High Light: | 250kg Palletizing Robot Arm,250kg robotic bag palletizer,Drum Palletizing Robot Arm |
||
MOTION RANGE & DIMENSIONS

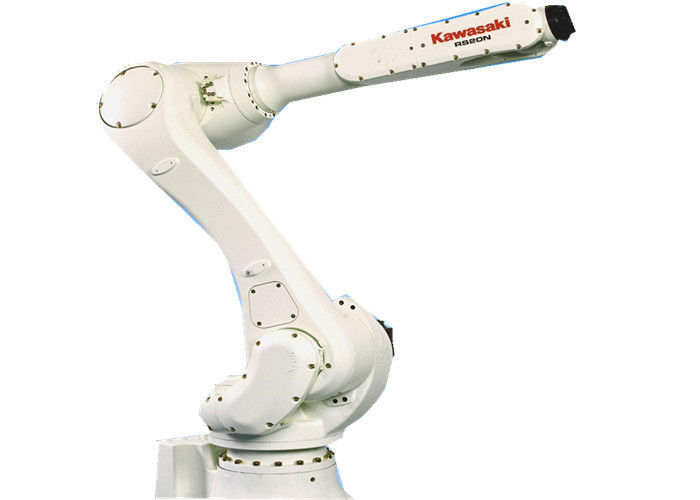

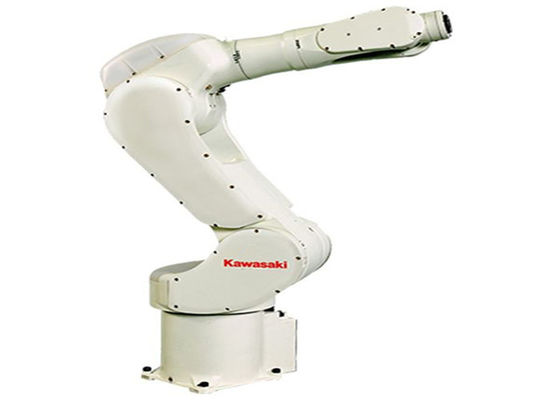

Kawasaki Drum Palletizer Robot In Beverage And Medicine Industry With Suction Gripper
HIGH-SPEED PALLETIZING ROBOT
Designed specifically for palletizing applications, the Palletizer Series features five unique robots with payload capacity from 80 kg to 500 kg to suit most needs. With industry leading work range and reliability, Kawasaki's high-speed palletizing robots help companies improve production line efficiency.
FEATURES
Broad operating range and high payload capacity
The RD80N is the most compact model, but possesses a wide range of movements. In addition, the RD80N stacks a maximum height of 2062.3 mm on 1100*1100 pallets.
Palletizing capacity worthy of our high-speed age
Kawasaki palletizing robots deliver the high-speed operation needed for distribution. When moving a vertical distance of 400mm and a horizontal distance of 2000 mm in a to-and-tro motion, the RD80N can perform 900 cycles per hour with loads of 80kg. In the same conditions the ZD130S is capable of performing 1500 cycles with loads of 130kg, while the MD500N can do up to 600 cycles with loads of 500kg.
No wasted action with the small installation space
RD80N has a turning radius of 397 mm, enabling it to cover a wide working area at high speed while occupying less space than a person. The MD500N features a unique new-type link mechanism for the upper and lower arms, allowing for a compact body without a counter weight.
Cubic-S which is an optional function to monitor the movement of robots, can be used to limit the range of robot movements and make safety fence area smaller.
Simple palletizing software K-SPARC(option)
Kawasaki’s palletizing software K-SPARC allows layout planning and operations to be simulated on your computer. All you have to do is simply start up your computer and select the workpieces, pallets, and stacking patterns you want to use. You can also review layouts displayed on screen as well as simulate robots. With its enhanced usability, K-SPARC supports more pallet stacking patterns than conventional palletizing software, making it easier to teach robots.
ROBOTSPECIFICATIONS
| Degrees of Freedom | 4 axis | ||
| Payload | 300 kg | ||
| Work Envelope (degrees) & Maximum Speed (degrees/s) |
Axis | Motion Range | Maximum Speed |
| JT1 | ±160° | 115°/s ✽5 | |
| JT2 | +95 - –46 | 100°/s ✽5 | |
| JT3 | +15 - –110 | 100°/s ✽5 | |
| JT4 | ±360° | 250°/s ✽5 | |
| JT5 | - | - | |
| Working area | Width | 1,800 mm | |
| Depth | 1,600 mm | ||
| Height | 2,200 mm | ||
| Moment of Inertia | 100 kg•m2✽5 | ||
| Palletizing capacity✽2 | 2,050 cycle / hour✽5 | ||
| Positional repeatability | ±0.5 | ||
| Mass | 1600 kg | ||
| Power requirements✽3 | 12 KVA | ||
✽2: Movement method (reciprocating by rising 400mm, horizontal movement 2,000mm, falling 400mm)
✽3: Depending on load and movement mode
✽4: If the load is less than or equal to 130kg
✽5: If the load is less than or equal to 250kg.
Package and Delivery
Machine film wrapped and packed in exported fumigation wooden box, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.
Why choose us
1. We will help you with the program of Kawasaki, and the basement and grab hands.
So that you can easily use it.
2. Also, we will send our technician to your factory workshop to train your operator until they know how to use.
3. We have done many projects of ABB robot palletizing together with our packing and filling system to be a whole system. We have many brands of robot, not only ABB, but also Kawasaki, Fanuc, Kuka etc. and we can select the best suitable & cheapest robot model for you.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will
go to your factory to install and adjust the processing line to realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.
It normally costs 10 days for the commissioning service, and we supply 1-year guarantee from the date of completion of commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily salary USD 60-100 are on client’s account.
MOTION RANGE & DIMENSIONS
Customize Contact Us
You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.
1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the palletizing type (how many bags per layer, how many layers per pallet, how the bags are put on each layer)?
6. What's the sizes (length, width, height) of empty pallet?
7. Do you want auto pallet magazine?
8. What’s your country voltage?
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: what’s the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
Q: what’s policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Q: What’s your terms of payment?
A: Payment is Less than or equal to1000USD, 100% in advance. Payment is more than 1000USD, 30% T/T in advance, balance before shipment.
Q: How do we test your machinery?
A: When the machine completely manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
