Product Details:
|
| Color: | White | Condition: | New |
|---|---|---|---|
| Application: | Beverage, Food, Medical, Feed Etc. | Another Name: | Robot Palletizer |
| Control Language: | English Or Other Language | Gripper Type: | According To Client's Product |
| Max Payload: | 110kg / 180kg / 250kg | Product Capacity: | Multi Lines, 8s Per Cycle |
| High Light: | 100kg bag robotic palletizing system,180kg bag robotic palletizing system,robotic bag palletizer |
||

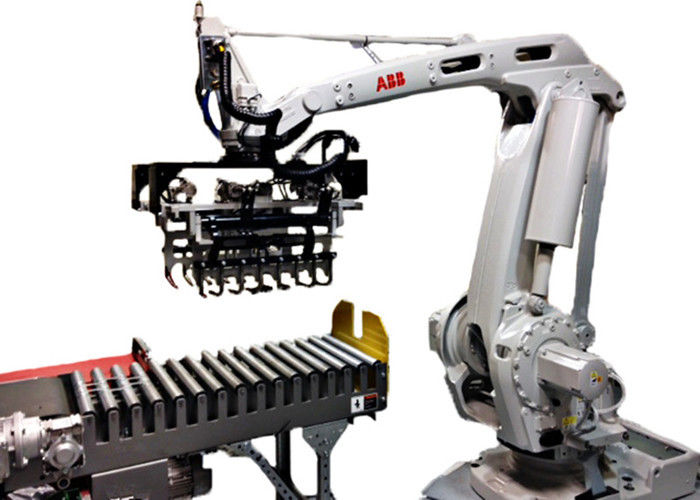

IRB660 4 Axis Palletizing Production Line In Fertilizer Industry For 100 Kg Package
Pushing the work envelope
The ABB 660 is a dedicated palletizer that blends speed, reach and payload like no other robot on the market. This is an exceptionally fast 4-axis machine that combines a 3.15 meter reach with a 250kg payload, making it ideal for palletizing bags, boxes, crates, bottles and more.
The IRB660 is considerably faster than its predecessor. Its optimized motor power and motion performance ensure significantly shorter cycle times than competing products. The new palletizer comes in a high-speed version capable of handling 180kg payloads at full speed and as a 250kg version for high throughput.
The robot’s impressive reach means it can service up to four in-feed conveyors, two pallet stacks, one slip-sheet stack and four palletizing out-feeding lines. In fact, the IRB 660 has the versatility, reach and handling capacity to meet the demands of just about any palletizing applications.
The IRB 660 is easy to come to grips with ABB’s multi-functional IRC 5 controller and comprehensive packaging line software PickMaster, house all the key functions for quick, easy programming and intuitive operation on the shop floor. Furthermore, the robot’s rugged design and IP 67 tightness make for steady performance in even the toughest environments. As well as ensuring those extra lengthy service intervals.
| Specification | ||
| Robot versions IRB | Handling capacity | Reach |
| 660-180/3.15 | 180kg | 3.15m |
| 660-250/3.15 | 250kg | 3.15m |
| Number of axis | 4 | |
| Protection calss | IP 67 | |
| Mounting | Floor mounted | |
| IRC5 Controller variants | Single cabinet, Dual cabinet | |
| Cycles per hour | ||
| Load | Cycles per hour | |
| 180kg | 1570 | |
| 250kg | 1360 | |
| Performance | ||
| Position repeatability | 0.1mm | |
| Path repeatability | 0.3mm | |
| Axis movements | Working range IRB 660 | |
| Axis 1 Rotation | +180° to -180° Option +220°to -220° | |
| Axis 2 Arm | +85° to -42° | |
| Axis 3 Arm | +120°to -20° | |
| Axis 6 Turn |
+300°to -300°Default +150 rev. to -150 rev. Max. |
|
| Max velocity | ||
| Axis no. | IRB660-180/3.15 | IRB660-250/3.15 |
| 1 | 130°/ s | 95°/ s |
| 2 | 130°/ s | 95°/ s |
| 3 | 130°/ s | 95°/ s |
| 6 | 300°/ s | 240°/ s |
| Electrical connections | ||
| Supply voltage | 200-600V, 50/60 Hz | |
| Power consumption | ISO-Cube | 2.7KW |
| Normal movements | 3.2KW | |
| Physical | ||
| Robot base | 1136*850mm | |
| Weight | 1650kg | |
| Environment | ||
| Ambient temperature for mechanical unit | ||
| During operation | +0℃(32°F)to +50℃(122°F) | |
| During transportation and storage | -25℃(-13°F)to 55℃(131°F) | |
| For short periods | (Max. 24h) +70℃(158°F) | |
| Relative humidity | Max 95% | |
| Noise level | Max 73 dB(A) | |
| Safety | Double circuits with supervision, emergency stops and safety functions, 3-positions enable device | |
| Emission | EMC/EMI-shielded | |
Data and dimensions may be changed without notice.
Advantages
IRB 460 is the fastest 4 axis multifunction industrial robot in the world which can significantly shorten the cycle time of each part work and greatly enhance production efficiency. The arriving distance of this robot can be 2.4m and available loading 110kg. The highest handling movement can be 2190 times/hour when loading 60kg (400mm X 2000mm X 400mm) which is 15% faster than other product under similar conditions.
IEB 460 runs steadily with excellent path accuracy which matched movement control software of ABB patent QuickMove and TrueMove. The robot is also available even for the most sensitive product and ensures that cycle time is not affected.
IRB 460 robot is designed compacted which can shorten 20% of the distance to product pallet compared with the similar products that speed and loading is nearly. Only this index can improve production efficiency of 3%.
IRB 460 robot is produced based on automobile industry with steady structure and good design which uptime long and low maintenance costs. ABB also provide RoboCare 3 years warranty program which ensure the production available upremise of no additional cost.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will
go to your factory to install and adjust the processing line to realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers how to operate, clean, maintain the repair all the machine, until the worker could well operate the production line.
It normally costs 10 days for the commissioning service, and we supply 1-year guarantee from the date of completion of commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily salary USD 60-100 are on client’s account.
Working range at wrist center & load diagram
IRB 660-180/3.15 and IRB 660-250/3.15
Why choose us
1. We will help you with the program of ABB, and the basement and grab hands.
So that you can easily use it.
2. Also, we will send our technician to your factory workshop to train your operator until they know how to use.
3. We have done many projects of ABB robot palletizing together with our packing and filling system to be a whole system. We have many brands of robot, not only ABB, but also Kawasaki, Fanuc, Kuka etc. and we can select the best suitable & cheapest robot model for you.
Customize Contact Us
You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.
1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the palletizing type (how many bags per layer, how many layers per pallet, how the bags are put on each layer)?
6. What's the sizes (length, width, height) of empty pallet?
7. Do you want auto pallet magazine?
8. What’s your country voltage?
FAQ
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: what’s policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Q: What’s your terms of payment?
A: Payment is Less than or equal to1000USD, 100% in advance. Payment is more than 1000USD, 30% T/T in advance, balance before shipment.
Q: How do we test your machinery?
A: When the machine completely manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
