Product Details:
|
| Color: | White Or OEM | Uasge: | Product Stacking / Unloading |
|---|---|---|---|
| Type: | Packaging Line | Packaging Material: | Plastic, Paper, Film Etc. |
| Controller: | PLC | Software: | Provided |
| Load Weight: | 130kg (including Gripper Weight) | Controller Language: | English Or Other Language |
| High Light: | Carton Palletizing Robot Arm,130kg collaborative robot palletizer,130kg industrial robotic arm |
||

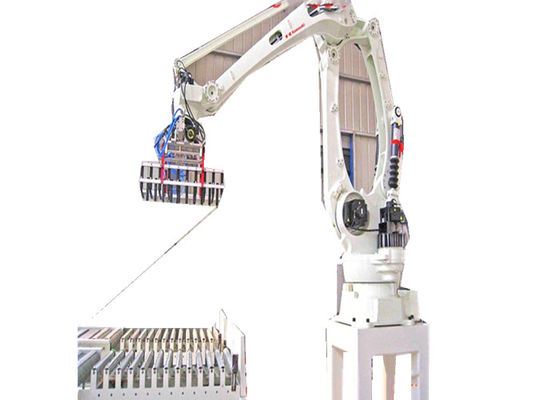

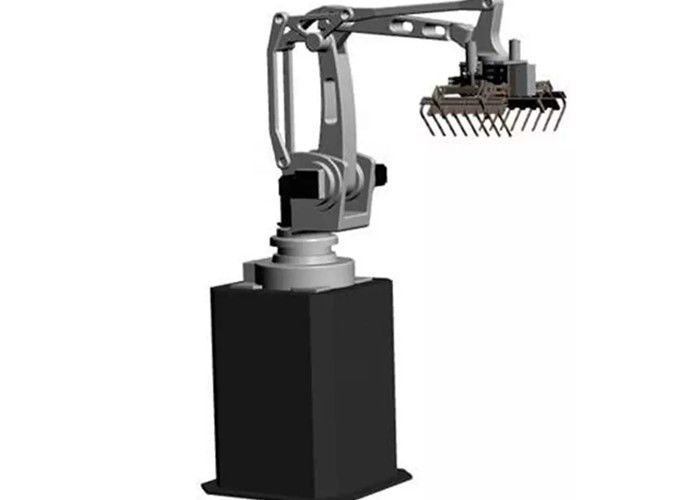

Kawassaki Floor-Mounted Carton Palletizing Robot Arm In Beverage Industry With Clamp Gripper
HIGH-SPEED PALLETIZING ROBOT
Designed specifically for palletizing applications, the Palletizer Series features five unique robots with payload capacity from 80 kg to 500 kg to suit most needs. With industry leading work range and reliability, Kawasaki's high-speed palletizing robots help companies improve production line efficiency.
FEATURES
1. Broad operating range and high payload capacity
The RD80N is the most compact model, but possesses a wide range of movements. In addition, the RD80N stacks a maximum height of 2062.3 mm on 1100*1100 pallets.
2. Palletizing capacity worthy of our high-speed age
Kawasaki palletizing robots deliver the high-speed operation needed for distribution. When moving a vertical distance of 400mm and a horizontal distance of 2000 mm in a to-and-tro motion, the RD80N can perform 900 cycles per hour with loads of 80kg. In the same conditions the ZD130S is capable of performing 1500 cycles with loads of 130kg, while the MD500N can do up to 600 cycles with loads of 500kg.
3. No wasted action with the small installation space
RD80N has a turning radius of 397 mm, enabling it to cover a wide working area at high speed while occupying less space than a person. The MD500N features a unique new-type link mechanism for the upper and lower arms, allowing for a compact body without a counter weight.
Cubic-S which is an optional function to monitor the movement of robots, can be used to limit the range of robot movements and make safety fence area smaller.
4. Simple palletizing software K-SPARC(option)
Kawasaki’s palletizing software K-SPARC allows layout planning and operations to be simulated on your computer. All you have to do is simply start up your computer and select the workpieces, pallets, and stacking patterns you want to use. You can also review layouts displayed on screen as well as simulate robots. With its enhanced usability, K-SPARC supports more pallet stacking patterns than conventional palletizing software, making it easier to teach robots.
ROBOTSPECIFICATIONS
| Degrees of Freedom | 4 axis | ||
| Payload | 130 kg | ||
| Work Envelope (degrees) & Maximum Speed (degrees/s) |
Axis | Motion Range | Maximum Speed |
| JT1 | ±180° | 135°/s ✽4 | |
| JT2 | +90 - –50 | 110°/s ✽4 | |
| JT3 | +15 - –120 | 130°/s ✽4 | |
| JT4 | ±360° | 400°/s ✽4 | |
| JT5 | - | - | |
| Working area | Width | 1,800 mm | |
| Depth | 1,600 mm | ||
| Height | 2,200 mm | ||
| Moment of Inertia | 50 kg•m2 | ||
| Palletizing capacity✽2 | 1,700 cycle / hour(130kg) | ||
| Positional repeatability | ±0.5 | ||
| Mass | 1350 kg | ||
| Power requirements✽3 | 10 KVA | ||
✽1: JT5's action angle is ± 10 °, relative to vertical downward.
✽2: Motion pattern (400 mm up, 2,000 mm horizontal, 400 mm down in a to-and-fro motion)
✽3: According to load and movement mode.
Why choose us
1. We will help you with the program of Kawasaki, and the basement and grab hands.
So that you can easily use it.
2. Also, we will send our technician to your factory workshop to train your operator until they know how to use.
3. We have done many projects of ABB robot palletizing together with our packing and filling system to be a whole system. We have many brands of robot, not only ABB, but also Kawasaki, Fanuc, Kuka etc. and we can select the best suitable & cheapest robot model for you.
MOTION RANGE & DIMENSIONS
Customize Contact Us
You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.
1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the sizes (length, width, height) of empty pallet?
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. Minimum order quantity: 1 set, FOB Shanghai Delivery time: about 20-30 working days after receipt of formal order and 30% deposit. Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time, if urgently, please call us.
Q: what’s the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
