Product Details:
|
| Type: | Fully-auto Weighing Packing Machine | Application: | Granular |
|---|---|---|---|
| Required Power: | 14KW | Packing Speed: | 4-8 Bags / Minute |
| Custom HS Code: | 8422400000 | Weighing Range: | 10-50kg Per Bag |
| Origin: | Hefei, Anhui, China | Accuracy: | ±0.2-0.3% |
| Measuring: | Weiging Sensor | ||
| Highlight: | Photoelectric Control Barley Packing Machine,Barley Weighing Packing Machine,Photoelectric Control Weighing Packing Machine |
||

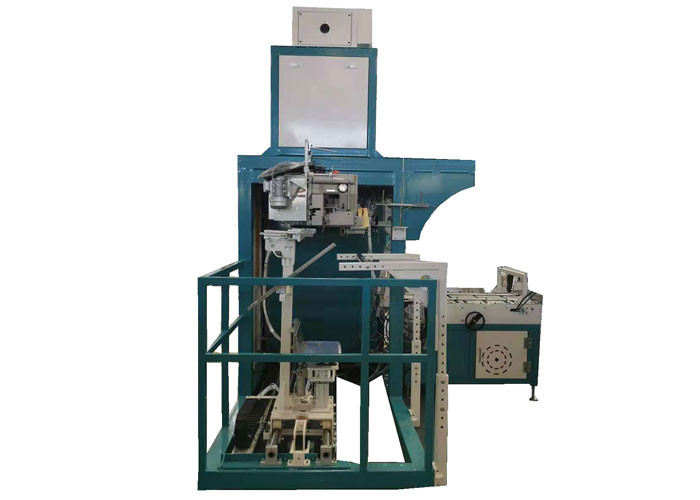

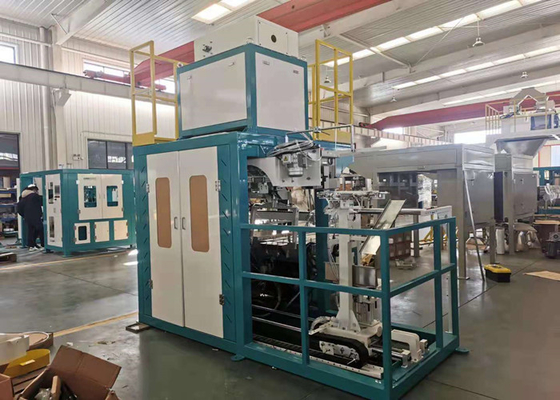

Photoelectric Control Barley Packing Machine For Pellet In Feed Industry
Application Scope
It is a fully automatic high-speed bagging machine, automatic weighing and filling machine, Automatic granule packing machine for 10-25kg open-mouth woven PP and paper bags.
Brief Introduction
Our new packaging machine unit designed for large bag of granule, powder materials in chemicals, fertilizer, feed, grain, seeds, food, rubber & plastic and other industries which has functions of automatic weighing, bag clipping, filling, bag sending, bag sealing etc. It can be connected with next steps equipment like palletizing robot etc. to realize large-scale package and unmanned operation of the stacking.
Each Parts Introduction
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Packaging
* Machine packing inside is plastic films and outside is fumigation wooden case.
* Our wooden case is very strong; it can bear long time shipping on the sea.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) |
Speed (bags/minute) |
Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) |
Empty bag: L * W Full bag: L * W * H |
||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
