Product Details:
|
| Capacity: | 6-10 Bags / Minute | Conveyor Length: | 3 Meters |
|---|---|---|---|
| Weighing Range: | 5-50kg | Precision: | ±0.2% |
| Automatic Grade: | Semi-automatic | Motor Power: | 0.75KW |
| Electrical Source: | 380-220 V, 50 Hz | HS CODE: | 8422400000 |
| Key Point: | Easy To Operate | ||
| High Light: | Granule Packing Machine 40kg,Semi Automatic Granule Packing Machine,Granule Packing Machine For Seeds |
||

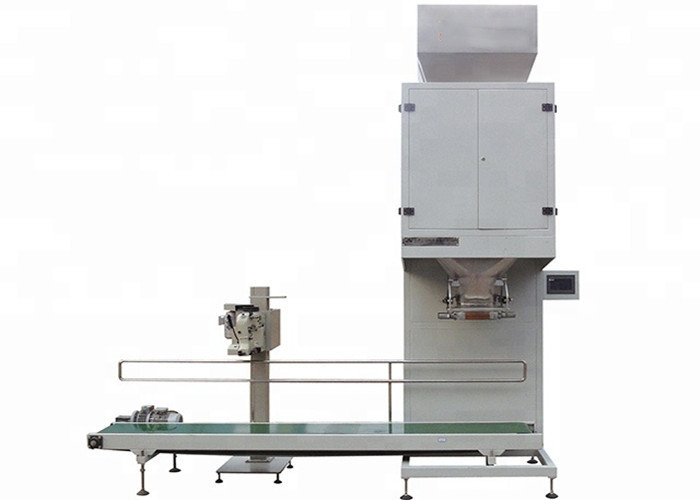

Stainless Steel Granule Packing Machine System In Seeds Industry With Double Weigher
Machine Features
♦. High Accuracy and high speed
♦. Packaging grain in 10-50kg bags or bottle.
♦. Double feed, Big valve and small vibration, Assure you good accuracy and speed.
♦. Chinese/English or custom your language in the touch screen.
♦. Reasonable mechanical structure, easy to change size parts and clean up.
♦. We use famous brand electric, more steady .
♦. Machine working with small noisy.
♦. All machine can be made of SUS 304 material.
Technical Parameters
| Technological parameters | |
| Machine Model | SXP25G |
| Weighing model | Net weighing / Gross weighing |
| Feeding Mode | valve feed, vibrate feed again |
| Package Weight | 10-50Kg |
| Package Accuracy | ±0.2% |
| Packaging Speed | 6-10 bags/min |
| Power Supply | 380 220V/50Hz |
| Atmospheric pressure and Use Tolerance | 6-8Kg/cm2 0.2m3/min |
| Total Power | 3Kw |
| Overall Dimensions | 900mm×800mm×2500mm (For reference) |
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 |
Contactor & breaker |
Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch | |
| 10 | Magnetic valve | AIRTAC | 1batch | |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Machine Main Parts
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Packaging and Shipping
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Inner package with stretch film, out package with export wooden box(with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
Shipping port: Shanghai/ Ningbo / Nanchang port or other port you need.
FAQ
Q: How about the guarantee period?
A: One-year whole machine guarantee.
Q: What's the payment term?
A: L/C or TT is accepted.
Q: What is the lead time?
A: 15-20 days after received the deposit.
Q: What is the material of contact material parts?
A: The contact material parts are made of 304 stainless steel. The machine body can be 304 stainless steel or carbon steel.
Q: Can this machine make different bag sizes?
A: Yes, we can be formulated according to your requirements.
Q: Can your machine meet our needs well?
A: After receiving your inquiry, we will confirm your
1. Your pack weight per pouch, pack speed, pack bag size (it is the most important).
2. Show me yours unpack productions and pack samples picture.
And then give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.
