Product Details:
|
| Max Accuracy: | ±2-5g | Origin: | Hefei, China |
|---|---|---|---|
| Machine Size (L*W*H): | 1485*1700*1400mm | Nearest Port: | Shanghai |
| Condition: | New | User Manual: | English Type |
| Machine Material: | 200-500kg | Original Certificate: | Provided |
| Highlight: | 2000g Check Weigher Machine,150ppm Check Weigher Machine,2000g automatic checkweigher |
||

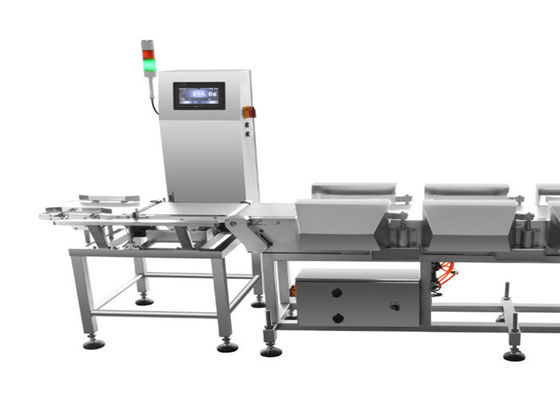

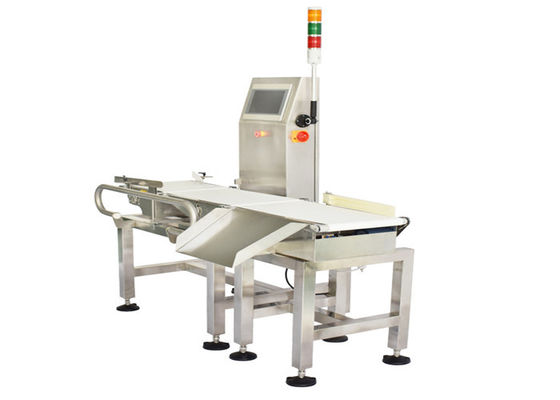

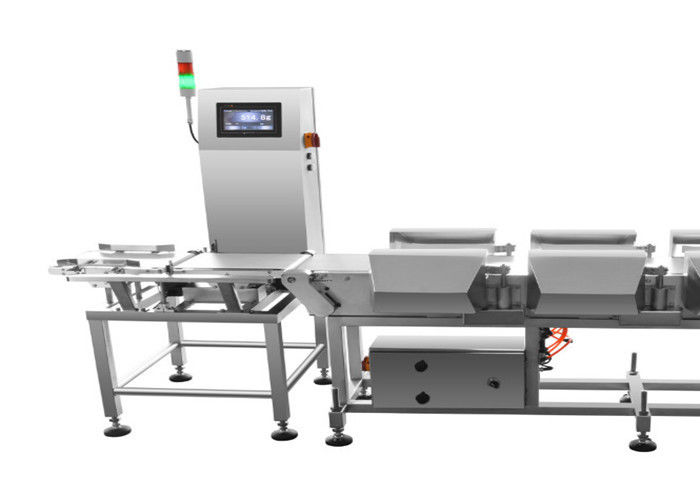

Food Grade Digital Type Weight Inspection Machine In Seasoning Industry
Machine Features
1. Precision accuracy: put to use high speed weighting module of importation and weight sensor in order to ensure checking accuracy
2. Simple structure: full stainless-steel manufacture, simply structure, easy maintain maintenance
3. Convenient operation: adopting 12-inch touch screen, operating simply, displaying Intuitively, supporting multi-language (acquiesce in Chinese &English)
4. External connecting conveniently: can be connected with other equipment in production line, such as printer, labeler inkjet printer and so on (client customization)
5. Wide application: Application for bag, filing pack weight checking, there are various section way to select (pulling, blowing, pushing jar type and so on)
6. Function of automatic feedback: providing the signal to frontend, feedback packing accuracy in time in order to adjust the feeding status of connected equipment
Brief Introduction
Check weigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Machine Parts List
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Zhenjie | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 50x50 | Carbon steel spray |
| 5 | Beam frame | Bending plate, thickness 3mm | Stainless steel |
| 6 | Main roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
| 9 | Touch screen | Saimo | |
| 10 | Sensor | HBM |
Technical Parameters
| Model | SCW06A/B/C | SCW20A/B/C | SCW30A/B/C | SCW60A/B/C |
| Scope | 6g-600g | 50g-2000g | 100g-3000g | 100g-6000g |
| Accuracy | ±0.4g | ±0.5g | ±1g | ±4g |
| Max. throughput | 200 ppm | 150 ppm | 120 ppm | 60 ppm |
| Belt Length(mm) | 220,300 | 300,400 | 400,500 | 600,800 |
| Belt Width(mm) | 150,200 | 200,250 | 250,300 | 400,500 |
| Table Height(mm) | 600-1000 | 600-1000 | 600-1000 | 600-1000 |
Our Service
1. one-year guarantee for whole machine
2. 24 hours technical support by e-mail
3. calling or door-to-door service
FAQ
Q. How about your after-sales policy?
A: Customer first is our principle. All of our products have warranty in 12months. We give necessary video guidance for daily problems. Our technical engineer can support overseas service if machine faces massive problems.
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Package
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
Application Scope
It is suitable to check weight of various products , over or less weight will be rejected out, mainly used to online process inspection and application in different areas, such as beverage , food ,health care products ,consumer goods , chemical and light industries.
