Product Details:
|
| Capacity: | 6-10 Bags / Minute | Conveyor Length: | 3 Meters |
|---|---|---|---|
| Weighing Range: | 5-50kg | Precision: | ±0.2% |
| Automatic Grade: | Semi-automatic | Trademark: | EAGLE |
| Load Cell: | 4 | Hopper Volume: | 0.3 CBM |
| Free Air Capacity: | 0.1 M3/Min | ||
| Highlight: | 25kg Granule Packing Machine,25kg granules packing machine,25kg grain packaging equipment |
||

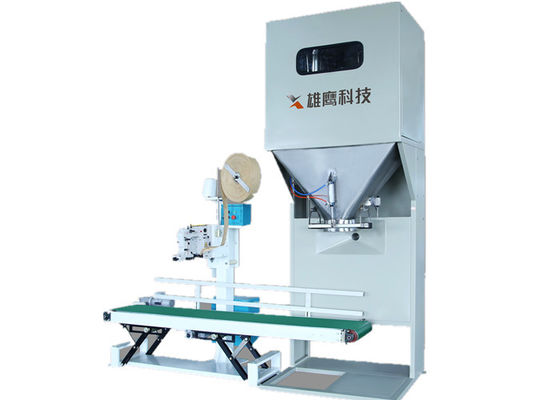

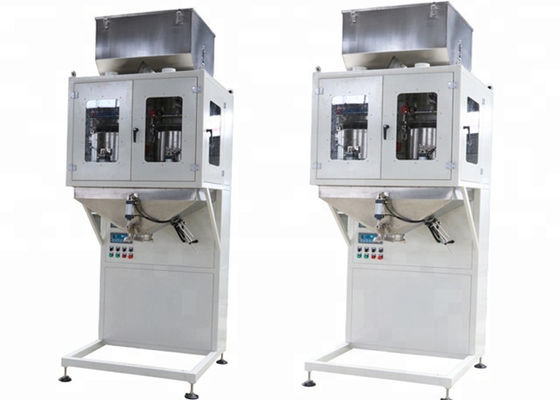

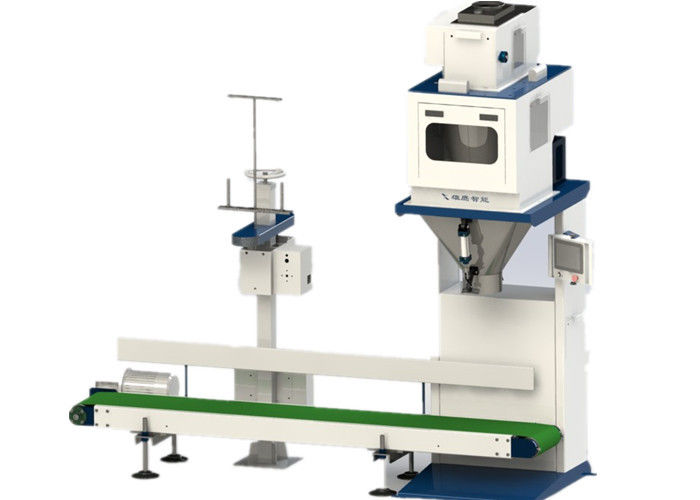

Double Bucket Explosion-Proof Granule Packing Machine System In Tea Industry
Machine Charactistics
The Main Machine Frame shall be customized made into SS304 Stainless Steel or Painted Carbon Steel and the customer can choose the painted color.
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.
The machine unit can realize automatic material measuring, manual bag feeding, automatic bag mouth sewing in one basic line.
Depending on customer's specific needs for packing, the machine can equip with bag push down conveyor, shaping conveyor, grasp conveyor and robot hand to form whole packing and palletizing line
Technical Parameters
| Technological parameters | |
| Machine Model | SXP25G |
| Weighing model | Net weighing / Gross weighing |
| Feeding Mode | valve feed, vibrate feed again |
| Package Weight | 10-50Kg |
| Package Accuracy | ±0.2% |
| Packaging Speed | 6-10 bags/min |
| Power Supply | 380 220V/50Hz |
| Atmospheric pressure and Use Tolerance | 6-8Kg/cm2 0.2m3/min |
| Total Power | 3Kw |
| Overall Dimensions | 900mm×800mm×2500mm (For reference) |
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 |
Contactor & breaker |
Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch | |
| 10 | Magnetic valve | AIRTAC | 1batch | |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Application: Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials,
starch, food, rubber and plastics, hardware, minerals, covering more than 20 industries, more than 3,000 kinds of materials.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
5. If the quality or specification of the goods is found to be inconsistent with the contract, or the goods are defective, the buyer has the right to exchange the parts and return he goods.
Packaging and Shipping
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Inner package with stretch film, out package with export wooden box(with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
Shipping port: Shanghai/ Ningbo / Nanchang port or other port you need.
FAQ
Q: How about the guarantee period?
A: One-year whole machine guarantee.
Q: What's the payment term?
A: L/C or TT is accepted.
Q: What is the lead time?
A: 15-20 days after received the deposit.
Q: What is the material of contact material parts?
A: The contact material parts are made of 304 stainless steel. The machine body can be 304 stainless steel or carbon steel.
Q: Can this machine make different bag sizes?
A: Yes, we can be formulated according to your requirements.
