Product Details:
|
| Type: | Multi-Function Packaging Machine | Weighing Range: | 10-50kg |
|---|---|---|---|
| Application: | Granule / Powder | Packing Speed: | 6-10 Bags / Minute |
| Weighing Accuracy: | 0.2-0.5% | Power: | 14 KW |
| Measuring: | Load Cell | Package Volume: | 40-50 CBM |
| High Light: | 50CBM Fertilizer Packaging Machine,50kg Fertilizer Packaging Machine,50CBM fertilizer packing machine |
||

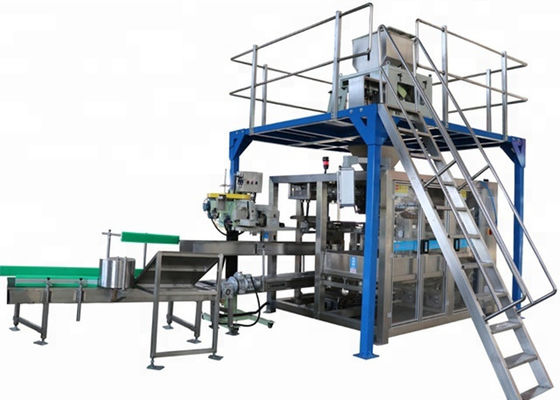

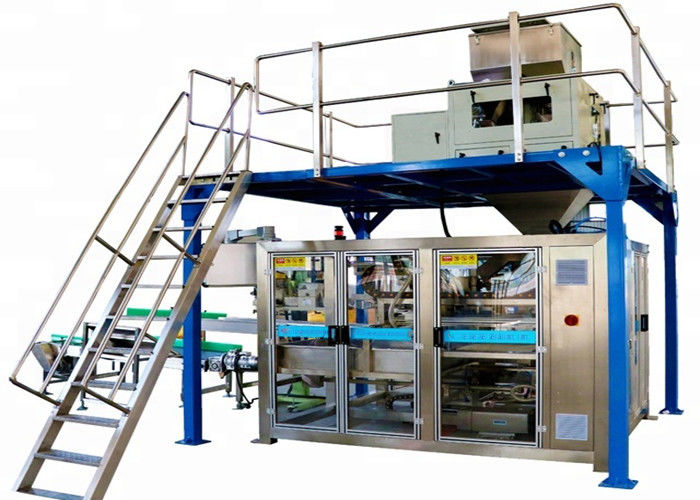

Vertical Type Automatic Weighing And Packing Machine For Fertilizer Industry
Brief Introduction
Our new packaging machine unit designed for large bag of granule, powder materials in chemicals, fertilizer, feed, grain, seeds, food, rubber & plastic and other industries which has functions of automatic weighing, bag clipping, filling, bag sending, bag sealing etc. It can be connected with next steps equipment like palletizing robot etc. to realize large-scale package and unmanned operation of the stacking.
Application
Applicable to many industries, including the chemical industry, cereal, food, pharmacy, fertilizer, seed, feed, and additives, etc., and mainly targeted at the full-automatic high-speed measurement and packaging of granular, loose and flake-like materials
Technical Parameters
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Package Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing | |
1.1 Packaging Unit
a. Hopper:0.3m³ Cone Type hopper, equipped with function of material level alarm
b. Measuring Scale: High accurate packaging, three-sensor location weighing structure, packaging speed over 700bags/h
c. Bag storage: 200-400 empty bags storage.
d. Bag Holding Type: mechanical arm fetching
e. Bag Sealing Type: fully automatic bag thread stitching or heat sealing or other sealing type customer required.
f. Repair Platform: Lade stand, anti-slip platform and safety railing
1.2 System equipment meets engineering condition &public use.
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
1.3 Machine Main components
a. Empty bag storage
b. Empty bag taking unit
c. Bag management unit
d. Bag sending unit
e. Bag upper unit
f. Bag clipping and material filling unit
g. Bag holding unit
h. Bag mouth guiding unit
i. Heat sealing / bag sewing station
j. Stand-up bag conveyor
k. Electrical control section
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Machine Features
1. PLC control system with low failure rate and higher reliability.
2.The host adopts fast and the slow inverter controls material filling.
3. It has automatic storage of production information.
4.The operating parameters can be stored for later use, avoiding recalibration when changing materials cyclically.
5.Accurate measurement accuracy and easy equipment cleaning, no blocking.
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Packaging
* Machine packing inside is plastic films and outside is fumigation wooden case.
* Our wooden case is very strong; it can bear long time shipping on the sea.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
* Upon receipt of delivery payment, delivery date will be in 3-15days
* By Air, by Sea or by Express (DHL etc.)
* Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Our Promise
Custom-made machine:
We have Great customized and design ability. Any required custom-made machine can be designed and manufactured for convenient operation and reasonable cost, making your packaging system work smoothly.
Installation:
1-We provide videos and instruction manual to show the process of installation.
2-We provide training for installation for free in our factory.
3-We can send technician to buyer's factory to install the machine and provide training service
After Sales Service:
1-One-year quality warranty and free lifetime technique support.
2-Free spare parts would be supplied if machine broken within warranty period.
3-After the warranty period, the spare parts for replacement are offered based on certain charge.
