Product Details:
|
| Automatic Grade: | Automatic | Type: | Multi-Function Packaging Machine |
|---|---|---|---|
| Voltage: | 220V 50/60Hz | Key Advantage: | Easy To Operate |
| Motor Power: | 0.75KW | Warranty: | 1 Year |
| Packing Speed: | 360-600 Bags / Hour | Weighing Controller: | Germain System |
| High Light: | 800g Vertical Sachet Packaging Machine,800g automatic vertical packing machine,800g vertical pouch packing machine |
||
Pellets Grain Packing Machine In Food Area 0.75 Kw Food Grade Stainless Steel
Application Scope

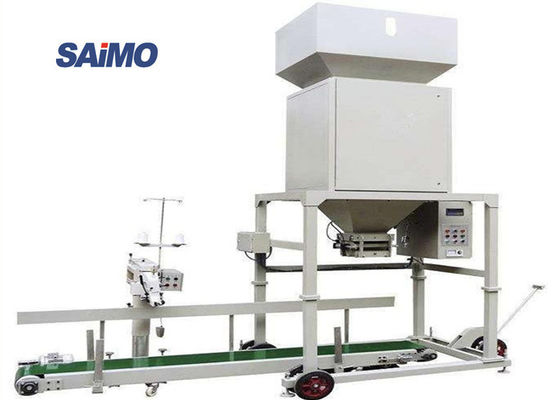

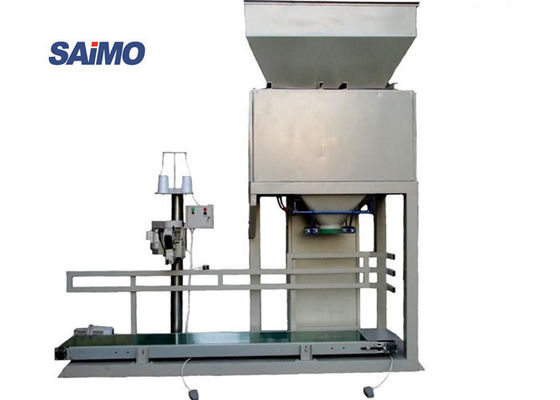

SXP50G Machine Unit Line is consisted of the main weighing machine, the 3 meters belt conveyor and auto sewing machine; The machine unit is suitable for customers who pack PP Woven Bag and mainly suitable for granular material. This machine is applicable to weighing of rice, wheat, paddy, fertilizer, Feed, etc that are granule material, and quantitative packing of finished products or semi-finished products from the industry of cereals, chemical, Light Manufacturing & Foodstuffs, etc.
Working Principles
This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. When the set value is reached, the bag clamper automatically opens, and the bag is sent away by the conveyor belt (bag sealed). Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding.
Features
Electronic touch screen, easy operation
Independent suspension sensors, signal stability, ensure the weighing accuracy
Infrared sensor, two speed feeding system, weighing precision is high
Ring folder bag institutions, make the bag with the feed opening sealed tightly, and can reduce dust spillover
Cooperate with feeding machine, conveyor, sealing machine optimal automation control, improve efficiency to reduce Labor intensity
Technical parameter
| Technical Parameters | |
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 4-6 bags/min |
| Weighing Range | 20-50 kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure | 0.4---0.6Mpa |
Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 |
|
Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch |
Installation
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Packaging and Shipping
Packaging
We use the wooden case to pack our packing machine
Shipping
Upon receipt of payment , delivery date will be in 10-35days,
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods
