Product Details:
|
| Automatic Grade: | Automatic | Controller Type: | PLC |
|---|---|---|---|
| Palletizing Type: | OEM | Language: | English Or Other Customer Required |
| Installation: | Engineer Guide Online Or On-site Service | Application: | Bag/carton/box-like |
| Voltage: | 380V Or Customized | Machine Type: | Packaging Line |
| High Light: | 2200bags / Hour High Speed Palletizer,380V High Speed Palletizer,Automatic High Speed Palletizer |
||

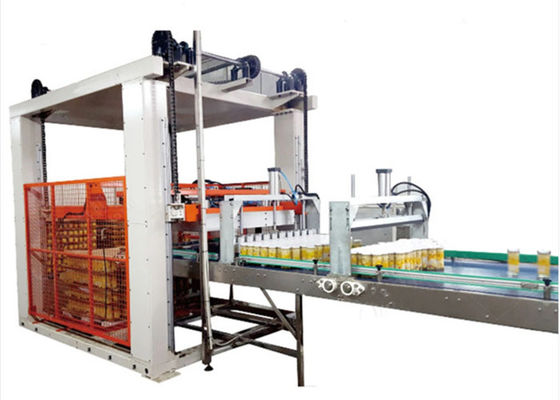

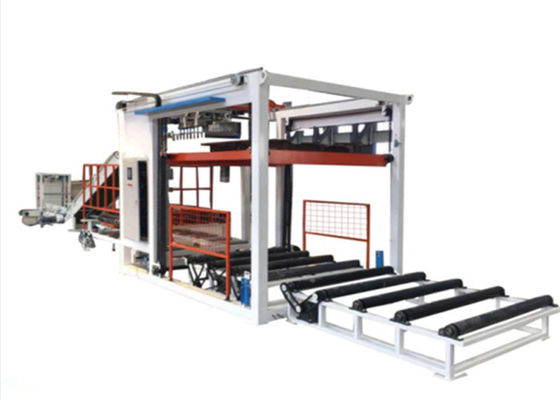

380 V High Accuracy Bag Palletizer Machine In Food Industry , Programmable
Brief information
The high level palletizer uses high-quality components from own or third-party supplier, such as pneumatic components of AirTAC, Simens PLC, touch screen etc.
Application scope
It is widely used in petrochemical, chemical, food, pharmaceutical, feed, grain, non-ferrous minerals and building materials industries which has high requirements for palletizing type and high speed palletizing after packaging, and robots cannot be used.
Specification and technical parameters
Palletizing speed: 1200bags/min (25kg)
Palletizing layer: 5 bags/layer, 12 layers/pallet
Total power: 25KW
Machine noise: ≤75db
Power type: 3 phase 380V/50Hz
Air volume: 250L/min(0.6MPa)
Package: valve bags
Product size and weight: 650×430×170/25kg
Pallet size: 1300Lx1100Wx130H Machine weight: 13000Kg
Working Principle
High-level palletizing is combined by climbing conveyors, slow-stop shaping machines, direction changing machine, grpuping machine, bag pushers, layer machine, elevators, pallet warehouses, pallet conveyors, palleting conveyors, elevated platforms, and control systems. It is characterized by high stack quality, neat stack shape and not loose. The upper and lower conveyors are used to press the bag to shape the package to form a regular rectangular shape. The control system uses Siemens (SIEMENS) programmable controllers, inverters, photoelectric switches and magnetic switches to form the main body of the control system to achieve the entire coordinated contro of transportation, grouping, and stacking.
Technical Parameters
| Model | SMK2200 |
| Application scope | Woven bag, kraft bag,composite film plastic bag, PE bag |
| Product Size and Weight | 650*430*170/25-50kg |
| Palletizing layers | 5 bags/layer, 12 layers/pallet |
| Capacity | 2200bags/hour |
| Pallet Size | 1300L*1100W*130H |
| Air consumption | 400NL/min |
| Working pressure | 0.6MPa |
| Total Power | AC308V,50Hz, 3 phases, 21.46KW |
| Palletizing Type | According to customer's requirements |
Installation Instructions
We will supply you the user manual and electrical drawing of all the machines for you to install the machines by yourself. If you think you cannot install the machines by yourself, we can send engineer to your factory for installing and debugging etc.
Welcome to Our Factory
FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specialized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What’s the shipping cost from China to your country?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
