Product Details:
|
| Drying Capacity: | 10, 12.5, 15, 22, 30 Tons/24 Hours | Application: | Grain Processing |
|---|---|---|---|
| Raw Material: | All Kinds Of Grain | Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. |
| Logo OEM: | Allowed | User Manual: | Provided In English |
| Warranty: | One Year | Spare Parts: | Provided |
| Installation: | Engineer Guide | Condition: | New |
| High Light: | 380V wheat drying machine,380V wheat dryer machine,5HXL-15 wheat drying machine |
||

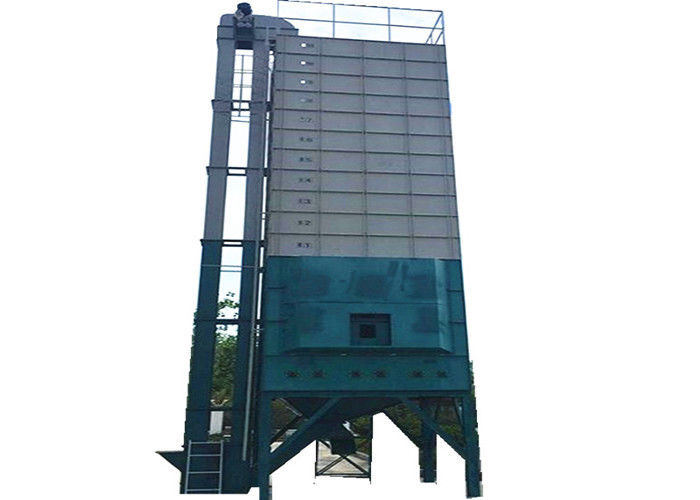

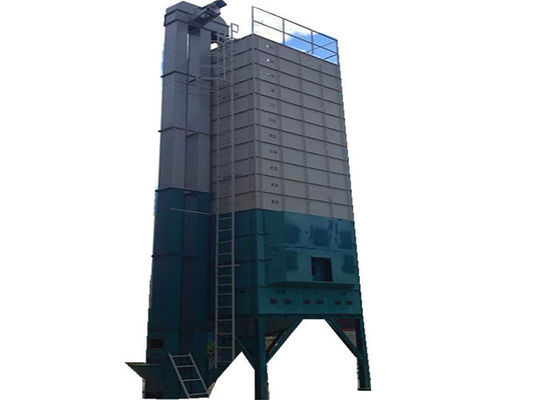

Batch Type Small Circulating Paddy Dryer Machine Unit 15 Tons In Agricultural Industry
Drying machine unit widely used for agriculture industry globally, suitable for drying wheat, rice, paddy, corn and so on grains with different types of capacity 12.5/15/22/30 tons per batch.
Product Feature
Low speed mixing, anti-broken elevator, grain broken rate low, good drying quality
Vertical large-size four-slot and large amount of air drying layer with high drying efficiency
Automatic intelligent electronic control system, the operation is easier
Optional imported online grain moisture meter to achieve accurate detection of grain moisture
Multiple heating method and fuels options with low drying costs
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Technical Parameters
| Dryer Type | XY-12.5T | XY-15T | XY-30T | |
| Structure Type | Fixed | Fixed | Fixed | |
| Whole Machine Weight(kg) | 3240 | 3625 | 4280 | |
| Overall Dimension(Length*width*height) (mm) | 3836*2480*10547 | 3836*2480*11637 | 4137*4058*12107 | |
| Volume(kg) | Paddy(560 kg / m³) | 2500-12500 | 2500-15000 | 6500-22000 |
| Wheat(680 kg / m³) | 3035-15200 | 3035-18200 | 7800-25000 | |
| Heating Method | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | |
| Voltage | 3 phase,380V,50HZ | 3 phase,380V,50HZ | 3 phase,380V,50HZ | |
| Whole Machine Power(KW) | 9.77 | 9.77 | 10.77 | |
|
Capacity |
Feed time(Minute) | 50-60 | 60-70 | 60-70 |
| Discharge time(Minute) | 45-55 | 50-60 | 50-60 | |
| Precipitation rate(%/hour) | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 | |
|
Safety Devices |
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |
Stove heating or heat pump
It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall
Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.
Can be fueled by Nature gas coal, wood, rice husk, diesel, etc.
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Components of paddy dryer
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Our Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Due to the large volume of the dryer, we will divide the machine into many small parts before delivery, which is convenient for packaging and transportation.
It's usually shipped in containers, 20GP, 40P, 40HQ
