Product Details:
|
| Condition: | New | Package Type: | Normal Open Or M Type Bag |
|---|---|---|---|
| Function: | Weighing, Filling, Sealing | Weighing Type: | Screw Weigher |
| Power: | 4 KW | Machine Material: | Material Contact Parts Use 304SS, Other Parts Use Carbon Steel |
| Air Pressure: | 0.4-0.6 MPa | Stand Bag Conveyor: | 3 Meters Long |
| Bag Sealing Typpe: | Bag Sewed Or Heat Sealed | ||
| High Light: | 50Kg Pharmaceutical Packing Machine,50Kg pharmaceutical packaging equipment,50Kg pharma packaging machinery |
||

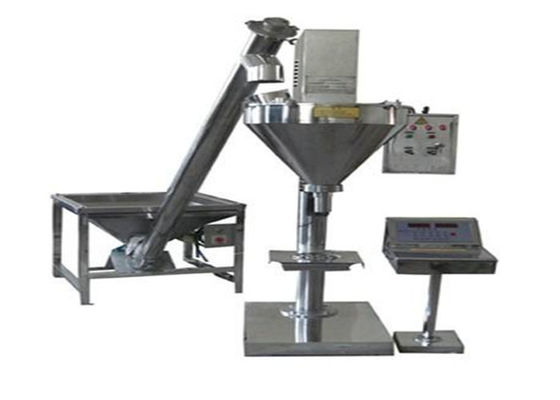

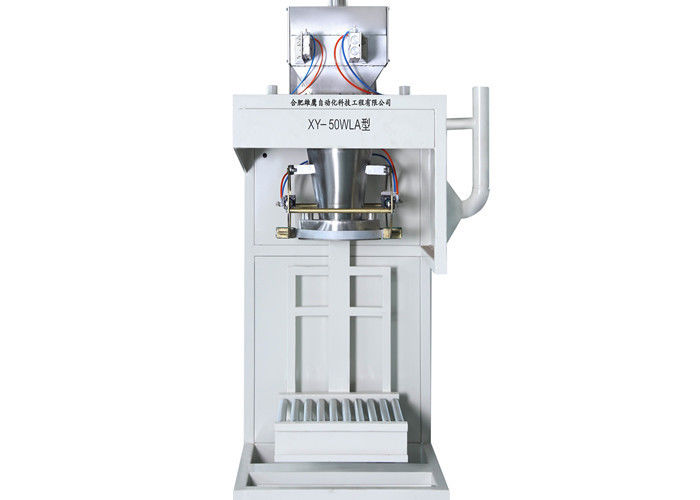

High Precision Powder Weighing And Filling Machine In Pharmaceutical Industry , 50 Kg Bag
Brief Introduction
This series packaging machine can be matched with feeder, hopper, bag filter, conveyor, bag sewing machine, and air compressor etc.
Application Scope
Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.
Working Principle:
This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding. When the set value is reached, the bag clamper automatically opens, and the bag is sent away by the conveyor belt (bag sealed).
Technical Parameters
| Model | Weighing Scope | Speed | Accuracy | Power | Air pressure |
| SXP05PB | 0.5-5kg | 4-6 bags/minute | 0.2-1%F.S | 2Kw |
0.4-0.6Mpa |
| SXP25PW | 5-25KG | 3-5 bags/minute |
0.2%F.S |
4Kw |
|
| SXP25PB | 5-25KG | 5-10bags/minute | |||
| SXP50PW | 10-50kg | 3-5 bags/minute |
Features:
Separate high brightness LED windows of packaging weighing inputting, weighing displaying; simple and intuitive menu operation; man-assisting bag-holding (or barrel),pneumatic bag clapping, independent weighing system: high weighing precision, high speed; high control precision with screws controlled by an asynchronous motor; functions of automatic peeling, data encryption, time displaying; stable structure, small area occupied, easy to clean and maintain.
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch | |
| 10 | Other pneumatic element | AIRTAC | 1batch |
Package bag examples:
After-sale Service
1.We will test the machine before machine delivery. 2.Professional manual shipping together with the machine.
3.Professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
Packaging and Delivery
1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.
WHY CHOOSE US
1.We have 30 years’ experience to packing machine
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory
4.ISO9001 certified workshop and CE
5.The supporter of spare part all are famous company and have reliable quality
