Heat Sealing Weighing 14KW 40Kg Pellet Packing Machine
Product Details

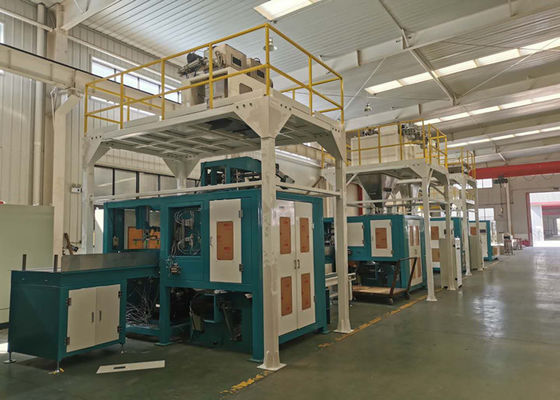

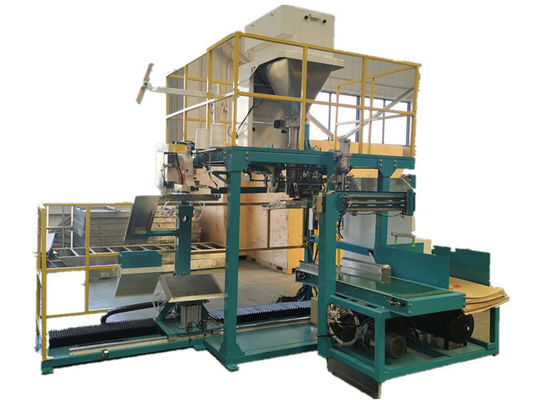

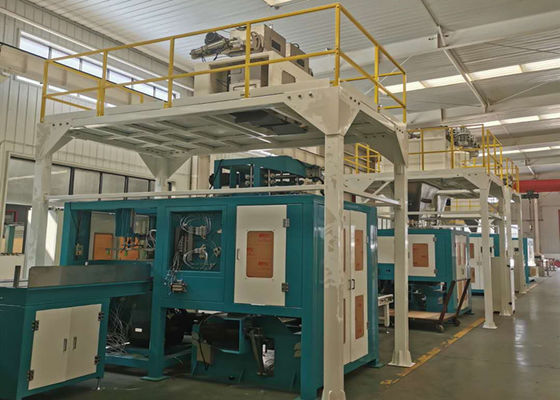

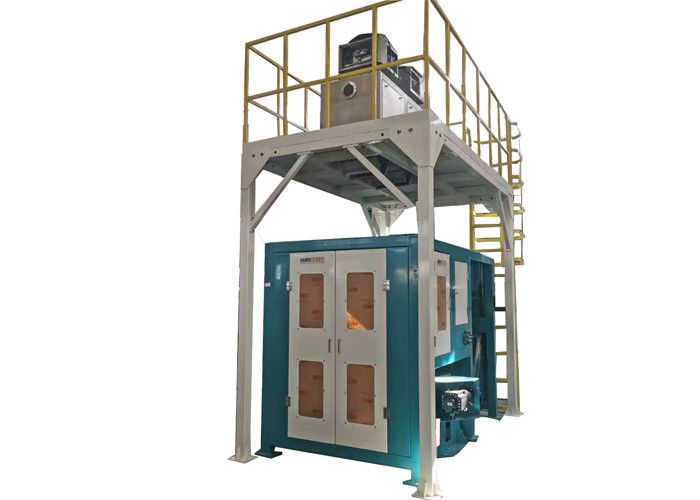

40Kg Pellet Packing Machine
,14KW Weighing Packing Machine
,5bags/Min Pellet Packing Machine
Pellet Granule Packing Machine For 40 Kg Heavy Bag In Plastic Rubber Industry
Application Scope
It is applicable for automatic packing in industries such as chemistry, fertilizer, grain, food, feed, medicine, construction materials, etc.
Brief Introduction
Our new packaging machine unit designed for large bag of granule, powder materials in chemicals, fertilizer, feed, grain, seeds, food, rubber & plastic and other industries which has functions of automatic weighing, bag clipping, filling, bag sending, bag sealing etc. It can be connected with next steps equipment like palletizing robot etc. to realize large-scale package and unmanned operation of the stacking.
Each Parts Introduction
- Weighing Machine: The part in contact with the material is made of 304 SS, other parts use carbon steel which sprayed with plastic. Metering speed: weighing controller and sensor, reserved for dust removal interface.
- Empty bag storage: The part in contact with the material is made of 304 SS, other parts use carbon steel which sprayed with plastic. Electric power, reducer motor system.
- Bag upper unit and Bag holding & guide unit: Delta servo drive system
- Whole control cabinet: Self-developed patent system, widely used in automatic packaging machines, and gained a good reputation. Germany Siemens PLC control system and software system, France Schneider Electric and other high-end configurations. Germany Sick photoelectric control system, wire and cable and bridge wiring.
- Bag sewing machine / Heat sealing machine: suitable for open mouth bag of woven bag, plastic bag, paper bag etc.
- Stand-up bag conveyor: Made of carbon steel + PVC belt + stainless steel baffle guardrail, reducer motor system, Germany Sick photoelectric control system, etc.
- Platform, guardrail, ladder: Carbon steel spray
Technical Parameters
| Machine Model | SXPA50 | SXPA50P |
| Packaging Weight | 10-50KG | 10-50KG |
| Bag Size: L*W(mm) | 630-1100/350-650 | 630-1100/350-650 |
| Package Material | Woven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm) | |
| Measuring Accuracy | 0.2%FS | 0.2%FS |
|
Packaging Speed |
6-15 bags/minute (a little different as different packaging materials and bag sizes) | 2-5 bags/minute (a little different as different packaging materials and bag sizes) |
| Sealing Mode | Woven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing | |
Machine main parts list (subject to actual configuration)
| No. | Name | Brand |
| 1 | Vacuum pump | Shanghai Zhongde |
| 2 | Cylinder | Japan SMC |
| 3 | Solenoid Valve | Japan SMC |
| 4 | Other pneumatic components | Japan SMC |
| 5 | Normal Motor | CPG |
| 6 | Servo Motor | Delta (Taiwan) |
| 7 | Heat sealing head | Dechao |
| 8 | PLC | Omron |
| 9 | Touch Screen | Weinview |
| 10 | Inverter | Delta (Taiwan) |
| 11 | Switching power supply | Schneider (France) |
| 12 | Switch | Schneider (France) |
| 13 | Air switch | Schneider (France) |
| 14 | AC contactor | Schneider (France) |
| 15 | Motor circuit breaker | Schneider (France) |
| 16 | Thermal relay | Schneider (France) |
| 17 | Limit switch | Schneider (France) |
| 18 | Photoelectric | SICK |
| 19 | Load cell |
Machine Features
- The 2 empty bag storages can store 200-400 empty bags at once which can save labors cost.
- We use famous brand of Weinview touch screen which is easy to operate and inside English language for customer easy understanding.
- The bag sending unit uses three mechanical grippers to clamp the bag and send it to the designated position through the electric cylinder, which reduces the drop rate and runs smoothly and reliably.
- The bag opening & material filling mechanism is composed of a base component, a bag opening component, and a bag clamping component. The entire operation runs smoothly and reliably, and the relevant movements are mainly completed by a robotic arm. The movements are coherent, coordinated and reliable, reducing the drop rate and instability.
- The bag sealing machine is optional and we have different choices for customer’s different type bags. Such as bag sewing machine, folding sewing machine, paper wrapping sewing machine, heat sealing machine, 3 in 1 hot melt sealing machine etc.
- The stand bag conveyor is composed of a motor and a guardrail. The motor uses a turbine worm gear motor, which runs smoothly and brakes stably. It can ensure that the bags on the conveyor are stable and reliable.
Working Process
Automatic bag seizing
Automatic bag opening
Automatic bag feeding & material auto filling
Bag automatic transferred by the conveyor
Auto bag sewing / heat sealing (folded)
Finished bag
Packaging
* Machine packing inside is plastic films and outside is fumigation wooden case.
* Our wooden case is very strong; it can bear long time shipping on the sea.
* And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Service Environment
It shall be avoided to use the machine in the working environment where there is corrosive, combustible gas or heavy powdery dust, it shall be avoided to use the machine in the place with temperature over 40℃, and shall be avoided to use it in the place with too high relative ambient humidity (>85%HR).
| RFQ | |||||
| Material Characteristics | |||||
| Material | density | ||||
| material shape | Leafy | powdery | Granular & Powdery Mixed | Flaky | Other |
| Requirement of Packaging | |||||
| Net Weight in each bag(kg) |
Speed (bags/minute) |
Weighing Accuracy | |||
| Daily production capacity | |||||
| Bag style | M type bag / Normal open bag | ||||
| Bag material | Single layer PE Laminated film | ||||
| Bag size(mm) |
Empty bag: L * W Full bag: L * W * H |
||||
| Machine material | SS304 Contact parts SS304 Carbon steel Other | ||||
-
