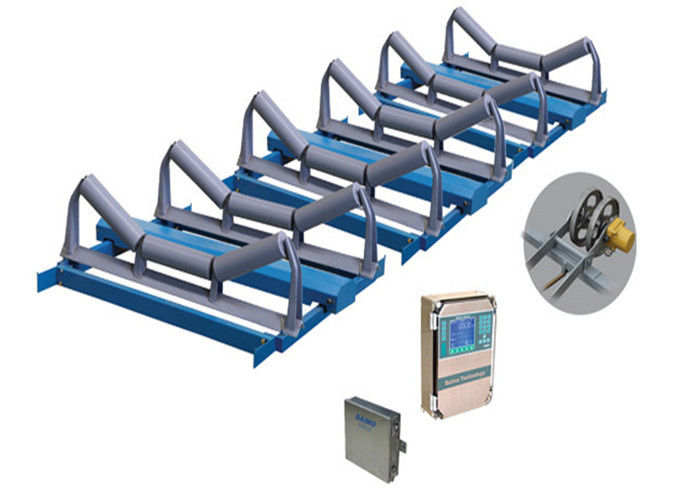

High Precision 5000tph 1000mm Conveyor Belt Weigher

High Precision Conveyor Belt Weigher In Electric Power Industry , 220 VAC

Brief Introduction

Electronic belt scale is a kind of measuring equipment for continuous automatic weighing of materials during the conveying process of the belt conveyor. It is characterized by the continuous and automatic weighing process. Usually, the weighing can be completed without operator intervention.

Application Scope

Series FH electronic conveyor belt scales are widely used for the measurement in conveying processes of building materials, metallurgy, electric power, chemical, coal, mining, ports and other industries.
It can not only be used in conventional environment, but also in acid, alkali, salt and atmospheric corrosion environments.

Main performance parameter



Standard scope of supply


Function

Convert the continuous analog signal from the load cell into the digital signal.

· Protection Class of Enclosure: IP65

· Circuitry Structure: 8-bit microprocessor, 24-bit A/D converter

· Power Requirement: 220VAC, 50Hz

· Communication: RS-485 serial communication available for the 6801 integrator, with settable baud rate: 9600, 19200 and 115200.

· Calibration: Needless

· Operating Temperature: -10~50℃

· Zero Temperature Drift: <0.15μV/℃

· Span Temperature Drift: <5ppm/℃

· Isolation: The input of load cell and speed sensor is optically isolated from other circuits.


Advantages

1. The measurement range of electronic belt scale is wide. The system can automatically control the feeding amount of belt conveyor according to the flow rate preset by the manager.
2. Belt scale with modular design, can provide heavy load weighing, is a high-precision single idler belt scale, can be used for production process control and material loading control;
3. Electronic belt scale is low price, high efficiency and energy saving, wear resistance and long life;
4. The system reserves a standard communication interface to facilitate production management and scheduling.

Packaging and Shipping



Why Choose Us

1) 40 years of experience in mining industry.
2) Professional mining equipment and dressing line designing and manufacturing capacity.
3) Providing best dressing solutions to customer through experiments on customer’s ore samples.
4) one-stop service of designing, manufacturing, installation, commissioning and training.
5) Modular processing line design, no need of site installation, greatly save labor costs and installation time on site.
6) High-quality after-sales service team.

FAQ
Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specialized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design & technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: Payment terms, MOQ
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery. MOQ: 1 set, FOB SHANGHAI
