Three Stage Feeding 10kg Granule Packing Machine with Germain Weighing Controller for Pet Food
Basic Properties
Place of Origin:
Hefei, Anhui, China
Brand Name:
AGMT
Certification:
CE
Model Number:
SXP25G
Trading Properties
Minimum Order Quantity:
One unit
Price:
4500
Payment Terms:
L/C,T/T
Supply Ability:
100 units/month
Product Summary
Three Stage Feeding 10kg Granule Packing Machine For Pet Food Three-Stage Feeding Granule Packing Machine System In Animal Food Industry With Duster Port Application The SXP50G Machine Unit Line consists of the main weighing machine, 3-meter belt conveyor, and auto sewing machine. This machine unit ...
Product Details
Highlight:
10kg Granule Packing Machine
,10kg pet food packaging machine
,AC380V Granule Packing Machine
Capacity:
6-10 Bags / Minute
Discharge Pressure:
0.7Mpa
Machine Weight:
400-600kg
Conveyor Length:
3 Meters
Weighing Controller:
Germain System
Load Cell:
Telode
Display Type:
Touch Screen/buttons
Hopper Volume:
0.3 CBM
Way To Change Package Weight:
By Changing Formula In Controller
Product Description
Three Stage Feeding 10kg Granule Packing Machine For Pet Food
Three-Stage Feeding Granule Packing Machine System In Animal Food Industry With Duster Port
Application

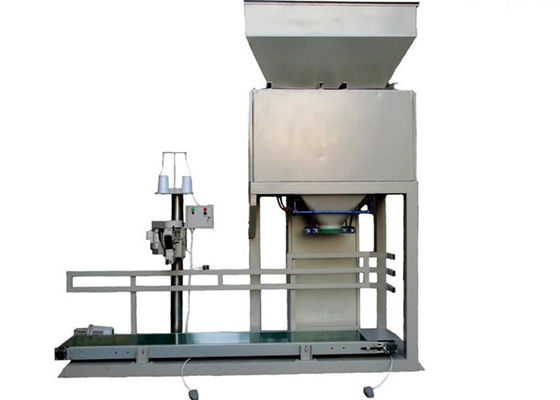

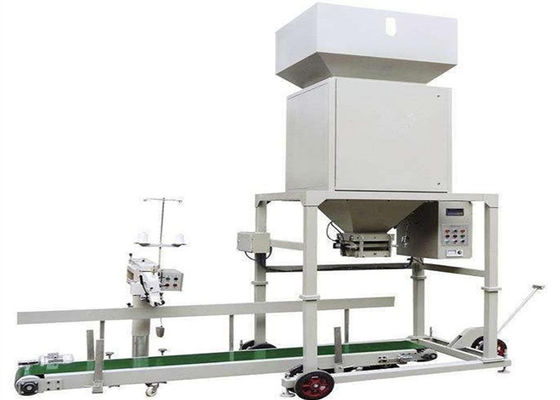

The SXP50G Machine Unit Line consists of the main weighing machine, 3-meter belt conveyor, and auto sewing machine. This machine unit is suitable for customers packing PP Woven Bags and is primarily designed for granular materials. It is widely applied in seeds, grains, feed mills, chemical granular products, and environmental protective granular products markets.
Machine Parameters
Technical Parameters
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15 bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | Oil-free, dust-free instrument gas |
| Pressure | 0.4-0.6Mpa |
Belt Conveyor Technical Specifications
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags/min |
| Power Supply | AC380V |
| Power | 0.75KW |
Machine Features
- High accuracy and high-speed operation
- Packaging grain in 10-50kg bags or bottles
- Double feed system with big valve and small vibration for optimal accuracy and speed
- Chinese/English or custom language support in touch screen interface
- Reasonable mechanical structure for easy size part changes and cleaning
- Famous brand electrical components for enhanced stability
- Low noise operation
- Available in SUS 304 material construction
Product Process
Raw material acquisition, cutting, laser processing, shearing, bending → Assembly, welding → Surface treatment: grinding, polishing, pickling → Final assembly, circuit board installation → Pre-delivery machine testing → Quality control inspection report → Delivery arrangement
Quality Assurance
- One-year warranty period
- Guaranteed compliance with quality specifications and contract performance requirements
- Proper installation and adjustment to meet contractual requirements after system operation
- Advanced design with excellent materials and main components from famous domestic and international manufacturers
Machine Main Parts
Our packing machine accessories utilize renowned brands including AirTAC pneumatic elements, German/Unipulse HMI (color touch screen panels), Schneider electric components, and 3-4 Toledo load cells (maximum weight 200kg/pc, IP67 rating). The bagging machine is designed for stable operation over 10 years.
Our Service
We provide 12-month warranty for all mechanical parts (excluding electrical/electronic parts and normal wear items), starting from shipment date (B/L date). The guarantee covers replacement of faulty parts after construction fault verification. Customer modifications without proper consent void the warranty. Trouble cause inspection is exclusively handled by the manufacturing company.
Packaging and Delivery
Machine cleaning and film wrapping → Equipment base fixation → Accessory packing verification → Wooden case closure → Mark printing and application → Loading and warehouse entry
Frequently Asked Questions
Where are you located?
Our factory is in Hefei city (2 hours high-speed train from Shanghai). Airport code: HFE.
Can your machine meet our needs well?
After receiving your inquiry, we confirm your pack weight per pouch, pack speed, pack bag size (most important), and review your unpacked products and pack samples. We then provide a customized proposal to meet your specific requirements.
Can you offer overseas service?
Yes, engineers are available for overseas service.
How to use the machine?
Before shipment, we install and test the complete machine set packed in wooden boxes. Upon receipt, you can start working immediately. We provide installation catalogs or online videos, and can dispatch engineers to your site if necessary.
Mrs. Candy
International Department Director
- Email: candycxy0614@163.com
- Tel: +86-15656019588
- WhatsApp: 8615656019588
-
WeChat:
86-15656019588
